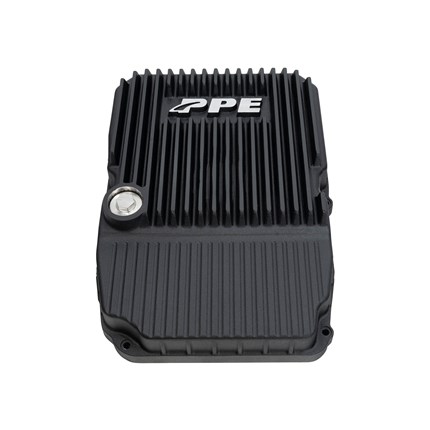

PPE Heavy-Duty Black Cast Aluminum Transmission Pan (WA580, W5A580, NAG1) - 07-08 Jeep Grand Cherokee 3.0L CRD | 05-13 Jeep Grand Cherokee | 12-18 Jeep Wrangler

Product Name: PPE Heavy-Duty Black Cast Aluminum Transmission Pan (WA580, W5A580, NAG1) - 07-08 Jeep Grand Cherokee 3.0L CRD | 05-13 Jeep Grand Cherokee | 12-18 Jeep Wrangler
Manufacturer: PPE
Manufacturer Part #: 228053520
Thoroughbred Diesel Part #: PPE228053520
Fitment Notes: 07-08 Jeep Grand Cherokee 3.0L CRD | 05-13 Jeep Grand Cherokee | 12-18 Jeep Wrangler

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 3/4 quart of additional fluid capacity, ensuring long-lasting heat management and performance.

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

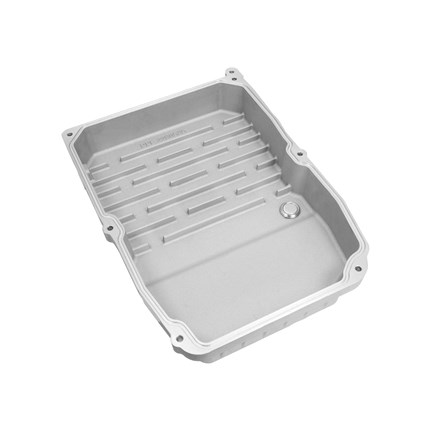

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

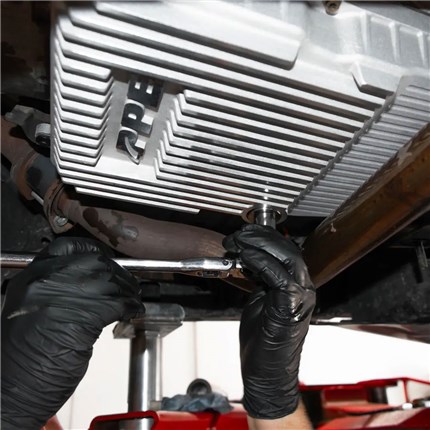

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.

Keep your 5-speed transmission running longer, healthier, and cooler with PPE.

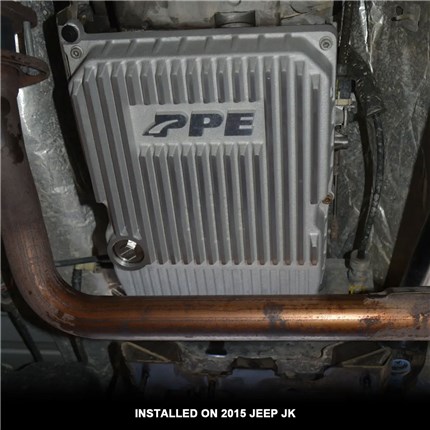

Note: Requires the use of an exhaust spacer kit or aftermarket Y-pipe in 12-18 Jeep Wrangler JK applications for extra exhaust pipe clearance.

OEM P/N for reference: Mopar 52108327AC Daimler/Mercedes 1402700812, 1402700212, 1402700412, 1402700512

PPE Heavy-Duty Cast Aluminum Transmission Pan Features:

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 3/4 quart for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Half-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity
• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
• Compatible with OEM gasket and filter
• LIFETIME LIMITED WARRANTY
• For more information on PPE call us at 1-859-737-4966
