PPE 65RFE/66RFE Heavy-Duty Cast Aluminum Transmission Pan (Raw) - 11-18 RAM 1500/2500/3500 |10-13 Jeep Grand Cherokee 5.7L 6.4L

Product Name: PPE 65RFE/66RFE Heavy-Duty Cast Aluminum Transmission Pan (Raw) - 11-18 RAM 1500/2500/3500 |10-13 Jeep Grand Cherokee 5.7L 6.4L
Manufacturer: PPE
Manufacturer Part #: 228052300
Thoroughbred Diesel Part #: PPE228052300
Fitment Notes: 2011-2018 RAM 1500/2500/3500 |2010-2013 Jeep Grand Cherokee 5.7L 6.4L

Heavy-Duty Cast Aluminum Transmission Pan

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 1.8 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

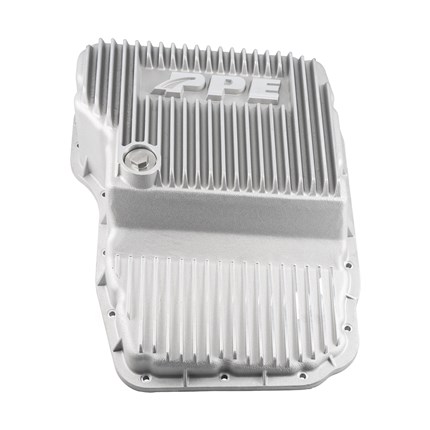

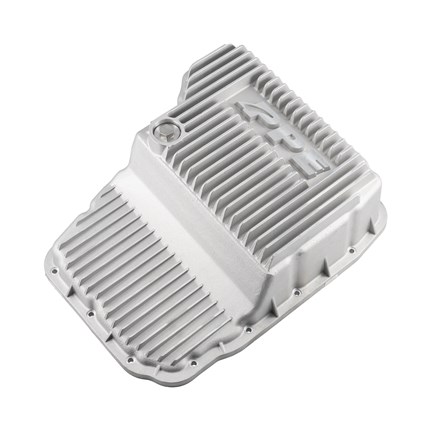

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

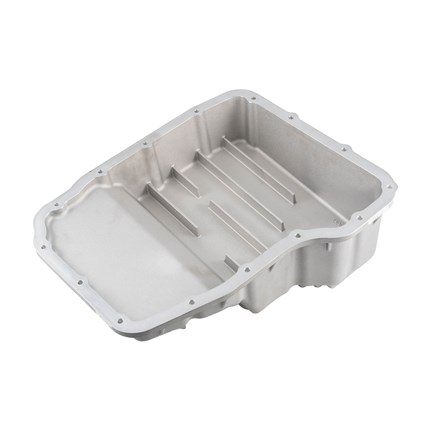

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission. Each pan is paired with a MicroPure® Spin-On Transmission Fluid Filter, offering larger media and better filtration. Keep your 6-speed transmission running longer, healthier, and cooler with PPE.

Note: Some applications may require the metal transmission lines to be bent a little bit for extra clearance.
PPE MicroPure® Spin-On Transmission Fluid Filter (SKU 228052150), PPE Sump Filter (SKU 228052186).
65RFE/68RFE compound gasket is available separately (SKU 228052004).

PPE 65RFE/66RFE Heavy-Duty Cast Aluminum Transmission Pan Features:

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 1.8 quarts for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation and increase impact resistance
• Deep 3/4-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity304 Stainless steel drain plug with built-in, high-temperature-rated neodymium magnet and Viton O-ring
• New spin-on filter included SKU 228052150
• LIFETIME LIMITED WARRANTY
• For more information on PPE call us at 1-859-737-4966
