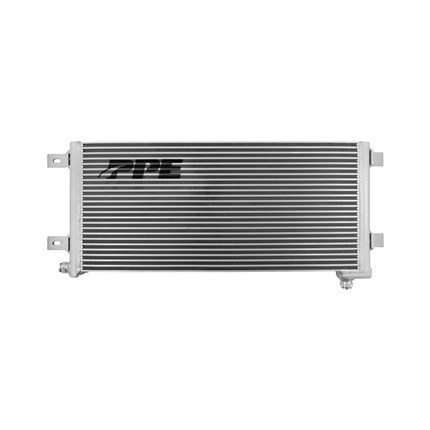

PPE 2015-2018 RAM 2500/3500 68RFE/AS69RC Bar and Plate Transmission Cooler

Product Name: PPE 2015-2018 RAM 2500/3500 68RFE/AS69RC Bar and Plate Transmission Cooler
Manufacturer: PPE
Manufacturer Part #: 224064000
Thoroughbred Diesel Part #: PPE224064000
Fitment Notes: 2015-2018 RAM 2500/3500 6.7L Cummins 68RFE/AS69RC

Bar and Plate Transmission Cooler

Excessive heat is the number one contributor to transmission failures and can cause clutch pack slipping, clunky shifting, fluid breakdown, etc. Constant overheating can reduce the transmission service life by 50% or more. The PPE bar and plate transmission cooler provides the proper cooling that your transmission needs to stay healthier and longer.

The PPE all-aluminum transmission cooler features a massive 360 cubic-inch core - that’s 118% larger than the stock cooler. The 28% larger frontal area increases its airflow exposure, enhancing heat dissipation. Its dense, louvered external fins maximize heat transfer to ambient air, helping achieve a temperature drop of up to 30°F to keep your transmission within the optimal temperature range - even under demanding conditions.

The PPE cooler’s bar and plate construction is a heavy-duty upgrade over the factory tube and fin design, delivering significantly greater cooling mass and flow capacity for true performance gains. Its all-aluminum build also offers superior pressure resistance and durability, making it ideal for performance applications.

Note: add PPE Thermostat Bypass Valve (SKU 225065000) for maximized cooling performance.

This transmission cooler does not fit 2013-2014 RAM Cummins trucks due to bigger power steering cooler and dual radiators.

LIMITED LIFETIME WARRANTY

FEATURES

• Massive 360 cubic-inch core volume, a 118% increase over the stock cooler for better heat dissipation
• 28% larger frontal area for increased airflow exposure and maximized heat transfer
• All-aluminum bar and plate construction for improved cooling capacity and pressure resistance
• Fully TIG-welded end tanks enhance strength and durability
• Delivers up to 30°F temperature drop, protecting against overheating and burnt clutches
• Includes new quick-connect fittings that work with stock cooler lines
• Retains all factory mounting points for a bolt-on installation
