PPE 10.5"-14 Bolt Heavy-Duty Cast Iron Aluminum Rear Differential Cover (Black) - 88-16 GM C/K 2500/3500HD

Product Name: PPE 10.5"-14 Bolt Heavy-Duty Cast Iron Aluminum Rear Differential Cover (Black) - 88-16 GM C/K 2500/3500HD
Manufacturer: PPE
Manufacturer Part #: 138052020
Thoroughbred Diesel Part #: PPE138052020
Fitment Notes: 1988-2016 GM C/K 2500/3500HD

CAST ALUMINUM REAR DIFFERENTIAL COVER FOR 1988 - 2021 GM AAM 10.5"-14 BOLT

Excessive heat can degrade the protective qualities of differential fluid, leading to accelerated wear of gears and bearings. In limited-slip differentials, constant high temperatures can break down clutch packs and friction modifiers, resulting in reduced efficiency and compromised traction control.

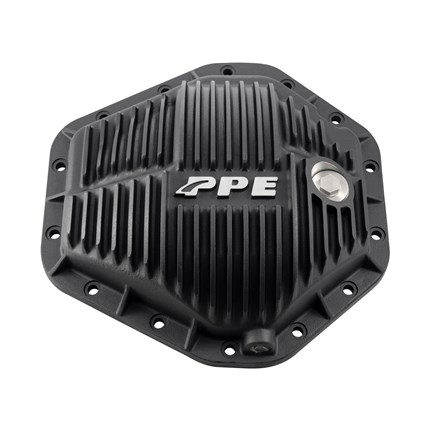

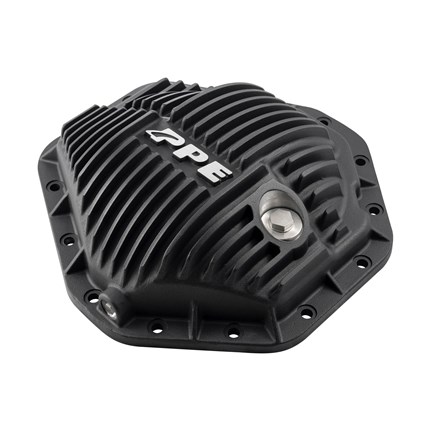

Cast from high-grade A356.0-T6 aluminum alloy, the PPE differential cover adds 0.65 quart of fluid capacity and features half-inch external cooling fins for long-lasting heat management and performance.

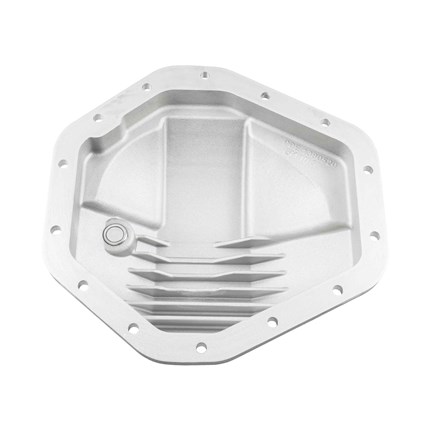

Built-in windage scrapers inside the PPE cover ensure precise fluid distribution around the gears. By reducing excessive fluid churning, these scrapers lower heat buildup and minimize parasitic loss, promoting more efficient power transfer. Together with the vertical external fins, they form a strong cross-bracing structure that improves load distribution and enhances impact resistance.

The fill plug is precisely positioned at the factory level. Both the fill and drain plugs feature a powerful, high-temperature-rated neodymium magnet that captures ferrous particles for added protection.

PPE 10.5"-14 Bolt Heavy-Duty Cast Iron Aluminum Rear Differential Cover Features:

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases oil capacity by 0.65 quart for higher thermal capacity
• Half-inch external fins improve heat dissipation, lower differential fluid temperature, and increase impact resistance
• Precision-placed internal windage scrapers prevent excessive churning, reducing heat generation, fluid aeration, and power loss
• External fins and internal scrapers work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional differential housing flange support and increased rigidity
• 304 Stainless steel service plugs with high-strength, high-temperature-rated neodymium magnets and Viton O-rings
• LIFETIME LIMITED WARRANTY
