Pacbrake Onboard Air Kit with 2 1/2 Gallon Aluminum Air Tank w/Air Compressor HP10164-AL

Product Name:Pacbrake Onboard Air Kit with 2 1/2 Gallon Aluminum Air Tank and Air Compressor
Manufacturer: Pacbrake
Manufacturer Part #: HP10164-AL
Thoroughbred Diesel Part #: PACHP10164-AL
Fitment Notes: Universal

Overview

Onboard Air Kit with 2.5 gallon air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories.

Fill your tires (tp to 33") and check tire pressure. Inflate air mattresses, sports balls, beach toys, etc.. Blow air for cleaning, dusting and quick removal of dust and debris. Onboard air is the ultimate in convenience!

Product Description

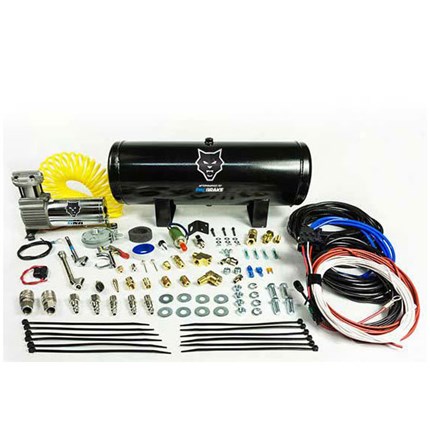

Onboard Air Kit with 2 1/2 Gallon Aluminum Air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories

Each Onboard Air System comes complete with:

• HP325 Series 12V DC compressor (Part Number HP10143)
• 2 1/2 Gallon air tank (Part Number HP10013)
• Fittings
• Pressure switch
• Relay(s)
• Electrical connectors and all applicable accessories

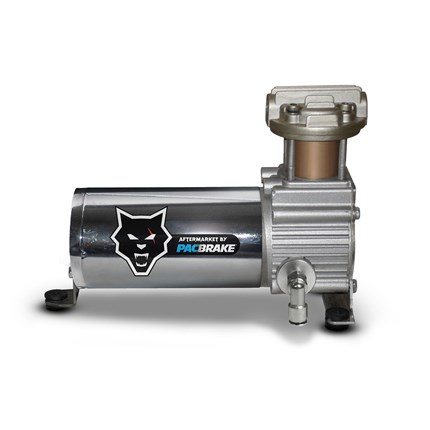

Compressor Specifications

• (Part Number HP10143)-12 VDC
• 100 percent (1 Hour at 100 PSI) duty cycle
• 1/4 HP
• Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
• Weight is 5.5 lbs

Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

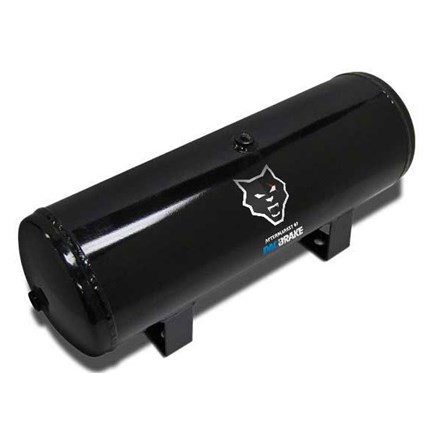

Aluminum Air Tank Specifications

• (HP10013)-2 1/2 gallon capacity
• 5-3/8' NPT ports
• Rust inhibitor applied to inside of tank
• Max working pressure 150 PSI
• Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)
• Weight is 9.8 lbs
• Welded on mounting brackets.

Application Notes

• This kit comes with a 2.5 gallon aluminum air tank.

Pacbrake Features:

• Each onboard air system comes complete with a aluminum air tank, pressure switch, relay(s), HP325 series compressor, fittings, electrical connectors, Pacbrake curly hose, and an air accessory kit housed in a heavy duty zipped canvas bag for easy storage on the go.
• Use it for Air Horns, Air Lockers and filling tires upto 33-inches.

• Inflate air mattresses, sports balls, beach toys, etc.

• Blow air for cleaning, dusting and quick removal of dust and debris.

• This kit comes with a 2.5 gallon aluminum air tank.
