Pacbrake Exhaust Brake Solenoid (Heavy Duty): 3-Way, 2-Position

Product Name: Pacbrake Exhaust Brake Solenoid (Heavy Duty): 3-Way, 2-Position
Manufacturer: Pacbrake
Manufacturer Part #: C10611
Thoroughbred Diesel Part #: PACC10611
Fitment Notes: Universal

Overview

Pacbrake offers various vacuum and air solenoid configurations to meet any specialty requirement or mounting location.

Our engineered commercial-duty and severe-duty solenoids have been exposed to some of the toughest testing grounds the world has to offer.

Pacbrake's experience designing cost effective hydraulic and pneumatic solenoids with demanding requirements has equipped Pacbrake with the experience to integrate solenoid controls into any application.

Product Description

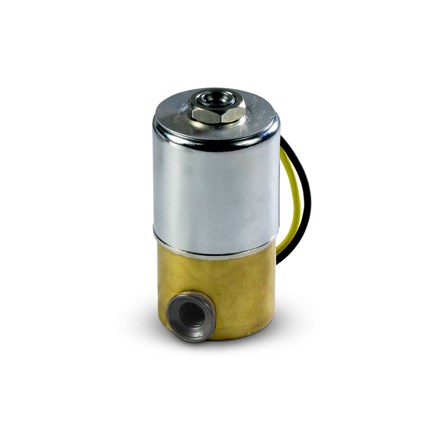

3-Way, 2-Position Heavy Duty Solenoid

• Brass Solenoid Base
• Zinc Chromate Plated Carbon Steel Solenoid Body

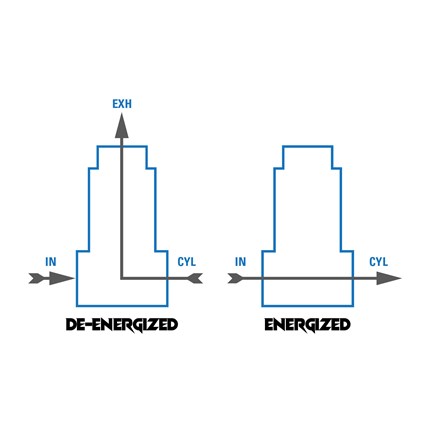

• 1/4" - 18 NPT Inlet "IN" Port — Normally Closed (opens when engergized)
• 1/4" - 18 NPT Outlet "CYL" Port — Normally Open to Exhaust (Atmosphere)
• 6" [152 mm] long 18 AWG ( UL 3173) pigtail
• 1N4006 Internal Suppression Diode
• NEMA 1 Protection

Specs:

• Coil Resistance 36 Ω to 45 Ω @ 24°C
• Working Temperature Range -40°F to 248°F [-40°C to 120°C]
• Maximum Working Pressure 0 psi to 135 psi [0 kPa to 931 kPa]
• Flow Rate Cv 0.18
• Proof Pressure 500 psi [3448 kPa]
• Burst Pressure 6000 psi [41369 kPa]
• Orifice Size 3/32" x 2 [1.52 +/- 0.08mm 2.38mm x 2]

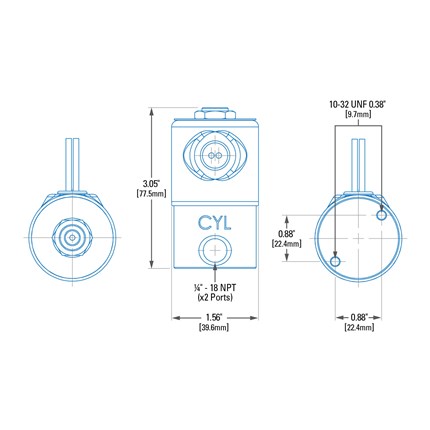

• Port(s) 1/4" - 18 NPT (2 Ports)
• Max Frequency 300 Cpm
• Response Time 5-15 ms

Pacbrake Features:

• NLET: 1/4" - 18 NPT "IN"
• Normally Closed - opens when energized
• OUTLET: 1/4" - 18 NPT "CYL"
• Normally Open to Exhaust (Atmosphere)
• Voltage Range: 24 VDC
• Coil Resistance: 36 Ω to 45 Ω @ 24°C
• For more information on Pacbrake call us at 1-859-737-4966
