Pacbrake Alpha HD Rear Air Suspension 2011-2016 F-250/F-350 & 2011-2014 F-450 Super Duty 2WD

Product Name: Pacbrake Alpha HD Rear Air Bag Suspension Kit - 11-16 F-250/F-350 & 11-14 F-450 Super Duty 2WD
Manufacturer: Pacbrake
Manufacturer Part #: HP10194
Thoroughbred Diesel Part #: PACHP10194
Fitment Notes: 11-16 F-250/F-350 & 11-14 F-450 Super Duty 2WD

Pacbrake's HP10194 AMP Air Spring Kit provides capability and comfort for 11-16 F-250/F-350 & 11-14 F-450 Super Duty 2WD. When you haul heavy loads or pull a trailer, the rear springs can be pushed to the limitresulting in excessive bounce, sagging ride height, and an overall feeling of instability. It doesnt have to be this way. With the simple addition of a Pacbrake air suspension kit, you can inflate the air springs enough to support the load without overtaxing the suspension, resulting in a level stance, comfortable ride and confident handling.

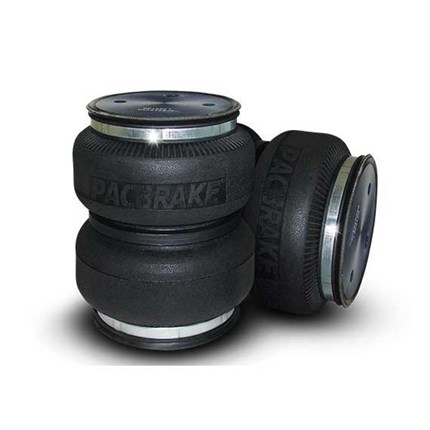

Pacbrake has been in the business of building heavy-Duty products for OEMs and the aftermarket for 50 years now, so introducing just another air suspension simply wouldnt do. The air springs in Pacbrake air suspension systems are made from double convoluted two-ply rubber, and are the only air bags on the market with one-inch aluminum end caps and 18 support wires for maximum strength and durability.

Pacbrake Air Spring Kit Features:

• 2-Ply Rubber Construction
• Precision Laser Cut Brackets
• Air Adjustable From 5 To 100 PSI
• Max Load Pressure @ 100 PSI - 2270 LBS
• For more information on Pacbrake call us at 1-859-737-4966.

Notes:

For all trucks including those with 5th wheel hitches.

Not for use on Cab & Chassis models.

Mounts inside frame rails.

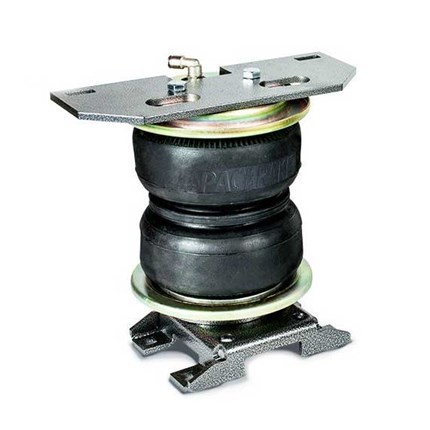

Image not of exact product.
