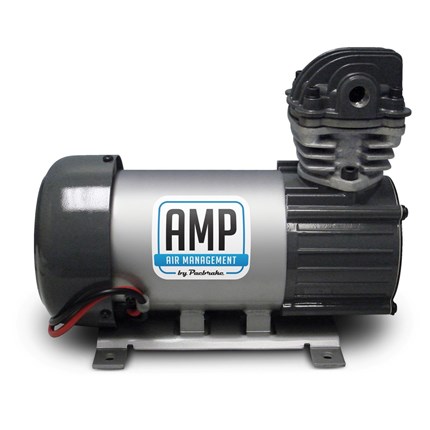

Pacbrake 12V HP625 Series AMP Air Compressor (Vertical) - Universal - HP10625V

The heavy Duty 12-volt and 24-volt (DC) air compressors are intended for filling air tanks for both the on and off- road markets. The popular 12V compressors are offered in two pump head configurations, vertical and horizontal. These 3/4 horsepower compressors have an oil-less design, sealed bearings, PTFE piston ring, copper wire wound permanent magnet motor and a cast cylinder with a hard anodized aluminum sleeve. Mountable in any orientation.

Note: The HP625 series Pacbrake compressors i.e Kit Number HP10625H and HP10625V require the use of the unloader assembly (Kit Number HP10116) for use with an air tank.

• 3/4 Horsepower
• 100% Duty Cycle
• 12-Volt & 24-Volt
• Vertical & Horizontal Pump Head Configurations
• 150 PSI Max Working Pressure, 3.4 CFM
• 158F Max / -40F Min Ambient Temperature
• 11.5" x 6" x 9.5", 17.7 lbs
