Odyssey Auto/LTV 12V Battery Model ODS-AGM42L (PC1200)

Product Name: Odyssey Auto/LTV 12V Battery Model ODS-AGM42L (PC1200)
Manufacturer: Odyssey
Manufacturer Part #: ODS-AGM42L
Thoroughbred Diesel Part #: ODYODS-AGM42L
Fitment Notes: Universal

Whether for everyday or emergency use, today’s vehicles are loaded with more electronics than would have been imaginable just a few years ago. ODYSSEY batteries have been designed to keep up with the changes. Because their plates are made of pure virgin lead (unlike the lead alloy in most batteries), we can pack in more plates. And more plates mean more plate surface area, and much more power - twice the overall power and three times the life of conventional batteries - up to 400 cycles at 80% depth of discharge!

ODYSSEY batteries deliver the massive starting power, rapid recovery, and amazing deep cycling capability that today’s vehicles demand.

Odyssey Battery Features:

• Voltage: 12v - PHCA: 1200
• Cold Cranking Amps (CCA): 540 - HCA: 860
• Reserve Capacity in Minutes: 78
• Negative Terminal Location: Left Side
• Terminal: internal threaded brass terminals with M6 SS bolts
• For more information on Odyssey call us at 1-859-737-4966

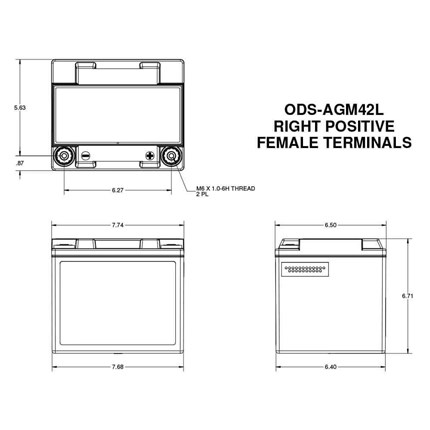

Dimensions

• Length 7.80 in
• Width 6.50 in
• Height (terminals included) 6.40 in
• Height (container) 6.70 in
• Weight 38.20 lbs

Specifications

• Voltage 12
• Pulse (5 second) Hot Cranking Amps (PHCA) 1200
• Cold Cranking Amps (CCA) 540
• HCA 860
• MCA 725
• 20Hr Nominal Capacity (Ah) 42
• 10Hr Nominal Capacity (Ah) 40
• Reserve Capacity Minutes 78
• Terminal M6 Receptacle
• Torque Spec in-lbs (Nm max) 60 (6.8)
• Internal Resistance (m?) 4.5
• Short Circuit (A) 2600
• Operating Temperature Range -40°F / -40°C to 113°F / +45°C
• Optimum Storage Temperature 68°F / +20°C
