NOCO NLP20 Powersport Lithium Battery 12V 600A

Product Name:NOCO NLP20 Powersport Lithium Battery 12V 600A
Manufacturer: Noco
Manufacturer Part #: NLP20
Thoroughbred Diesel Part #: NCONLP20
Fitment Notes: Universal

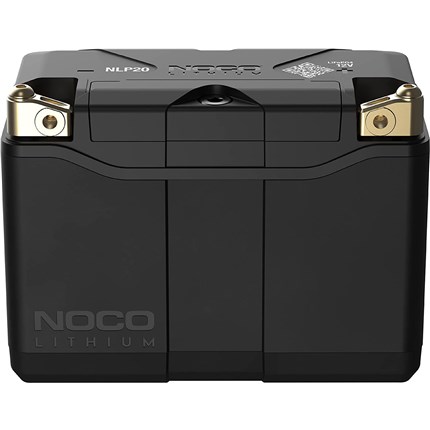

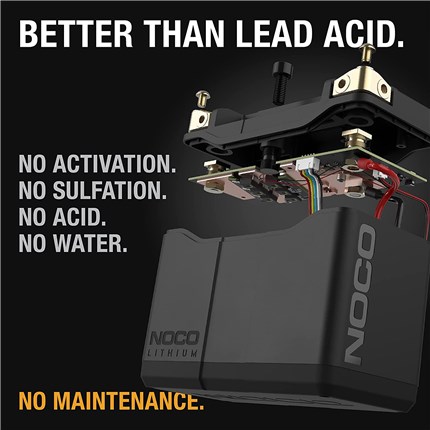

Introducing the all-new NOCO Lithium NLP20 12V Lithium Powersport Battery, a Group 20 battery, rated at 7Ah (89Wh) and 600-amps of starting power. It's better than lead-acid motorcycle batteries in almost every way: no sulfation, no activation, no acid, no maintenance, no water needed, and it comes fully charged and ready to install.

• The most highly-designed and engineered lithium powersport battery series ever.
• Use the Lithium mode on any GENIUS charger to fully recharge an NLP battery in minutes.
• Equipped with an auto-enabled, advanced battery management system that provides maximum protection, performance, and bi-directional cell equalization for long-lasting stability. No BMS reset needed.
• Designed with a custom rubber dampening base and foam inserts to extend the life of the battery and keep connections secure.
• NLP Terminals can be mounted from the front, side, or top, and can be removed altogether depending on the application.
• A removable mounting block allows the battery to fit more applications. The threaded insert enables direct-mounting for additional simplicity and security.
• The modular mounting spacer can be stacked and attached to the NLP batteries to alter the BCI size enabling the battery to be safely and securely mounted.

Noco Features:

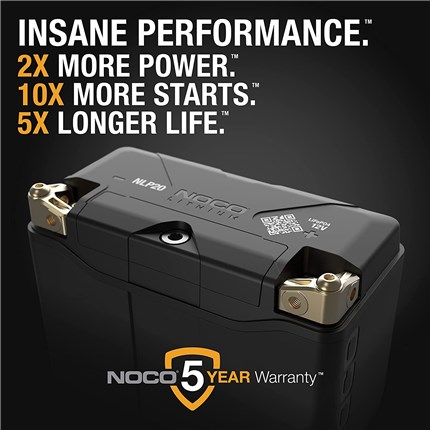

• Delivers over 600-amps of starting power, over 50,000 starts, and over 2,000 charge cycles, blowing away its lead-acid rivals. Simply put, it's 2X more power, 10X more starts, and 5X longer life.
• An advanced battery management system that provides maximum safety protection with bi-directional active cell balancing for long-lasting reliability. Plus, no BMS reset is needed.

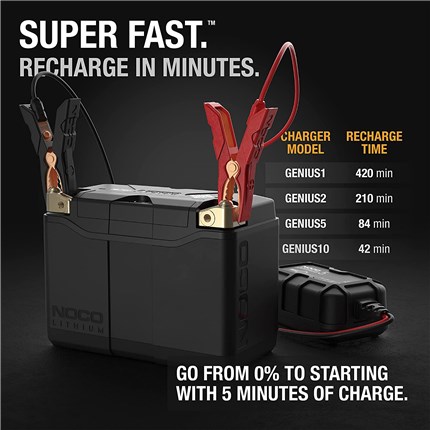

• Unleash the power of lithium and quickly recharge within minutes. Utilizing the most advanced rapid-charge technology, it provides enough starting power with just 5-minutes of charge.
• A multi-terminal configuration that allows front, side, top, and female installations. Plus, modular trays fit various group sizes and a removable mounting block to accommodate legacy battery applications.
• Compatible with most powersport brands, including Aprilla, BMW, Buell, Ducati, Harley-Davidson, Indian, Triumph, KTM, Argo, Can-Am, Honda, Husqvarna, Kawaski, Suzuki, Arctic Cat, BRP, Waverunner, Polaris, Vespa, and more.
• Replaces lead-acid powersport battery models: BTX20HL-BS, B16L-B, BTX15L-BS, BTX20L, B18L-A, BTZ20L, B16CL-B, B50-N18L-A3, BTX20L-BS, BTX15L, GYZ20L, GYZ20HL, YTX20HL, YIX20HL, YTX20HL-PW, YTX20HL-BS, YTX20HL-BS-PW, YIX20HL-BS, YTX15L, YTX20L, YTX15L-BS, YTX20L-BS, YB16HL-A-CX, YB16L-B, YB16CL-B, SYB16L-B, Y50-N18L-A, ETX16, ETX16L, and ETX20L.
• For more information on Noco call us at 1-859-737-4966

Technical Specifications

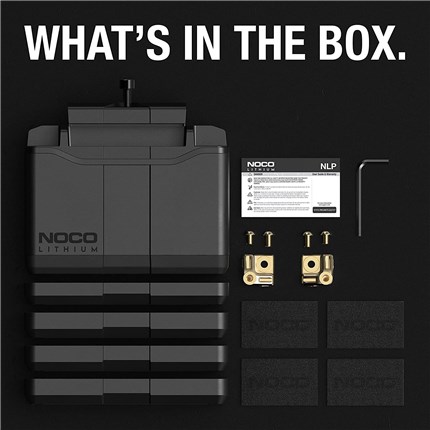

What's In The Box

• NLP20 Lithium Powersport Battery
• (2) 3-Way Terminals
• (1) 0.5 Inch (12 mm) Spacer
• (3) 0.6 Inch (15 mm) Spacers
• (4) 0.3 Inch (7.5 mm) Spacers
• Hex Key
• User Guide

Battery Chemistry

• Lithium Iron Phosphate (LiFePO4)

Battery Capacity

• 7 Amp-Hours / 89.6 Watt-Hours

Lead-Acid Equivalent

• 19 Amp-Hours

Starting Current

• 600 Amps (Peak)

BCI Size

• 20

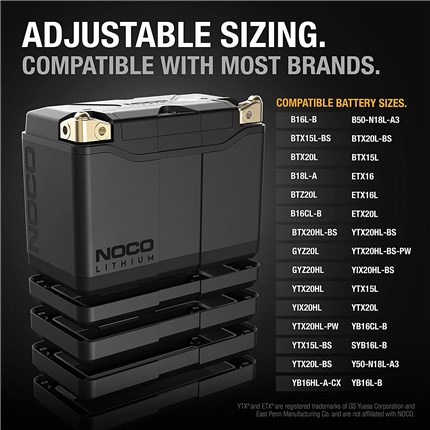

Compatible Battery Sizes

• BTX20HL-BS
• B16L-B
• BTX15L-BS
• BTX20L
• B18L-A
• BTZ20L
• B16CL-B
• B50-N18L-A3
• BTX20L-BS
• BTX15L
• GYZ20L
• GYZ20HL
• YTX20HL
• YIX20HL
• YTX20HL-PW
• YTX20HL-BS
• YTX20HL-BS-PW
• YIX20HL-BS
• YTX15L
• YTX20L
• YTX15L-BS
• YTX20L-BS
• YB16HL-A-CX
• YB16L-B
• YB16CL-B
• SYB16L-B
• Y50-N18L-A3
• ETX16
• ETX16L
• ETX20L

Product Size

• Height: 5.12 Inches (130 mm)
• Width: 6.9 Inches (175 mm)
• Depth: 3.4 Inches (87 mm)
• Weight: 3.73 lbs (1.7 kg)

IP Rating

• IP66 Waterproof Rated

Limited Warranty

• 5-Year Limited Warranty
