Mishimoto Intercooler w/Pipe & Boot Kit - BLACK - 03-07 Dodge 5.9L

Mishimoto is proud to announce a new Dodge Ram performance intercooler kit for the 2003-2007 Dodge 5.9L Cummins. This kit includes everything you need to improve airflow, substantially decrease air-charge temperatures, reduce EGTs, and support your truck at any power level.

The first key component is the Mishimoto intercooler piping. Our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow. These Cummins performance pipes are constructed of mandrel-bent 3.5" aluminum, polished to a mirror finish. This kit includes other Cummins performance parts, including Mishimoto silicone boots with DuraCore™ technology and constant tension T-bolt clamps for accurate and consistent holding force.

Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. This package is rounded out with the Mishimoto intercooler, featuring extremely durable cast aluminum end tanks and a bar-and-plate core, all designed to provide cool, dense air to your engine. This Dodge Ram performance intercooler features an increase in core volume and reduces pressure drop, which results in an overall increase in engine efficiency.

All the components in this kit are engineered to last, just like your truck. Offered with either a black or silver core, the Mishimoto 5.9L Cummins intercooler kit, like all our Dodge Ram performance parts, is protected by our signature Lifetime Warranty.

Features:

• Direct fit for the 2003–2007 Dodge 5.9L Cummins

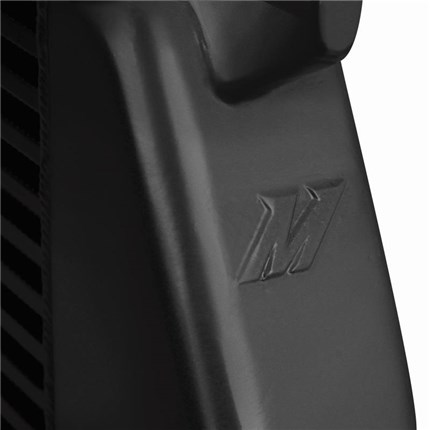

• Bar-and-plate construction with cast aluminum end tanks
• End tanks strategically designed for optimal airflow
• Mandrel-bent polished aluminum intercooler pipes
• Provides improved airflow and lowers intake air temperatures
• Mandrel-bent polished aluminum pipe eliminates restrictive bends

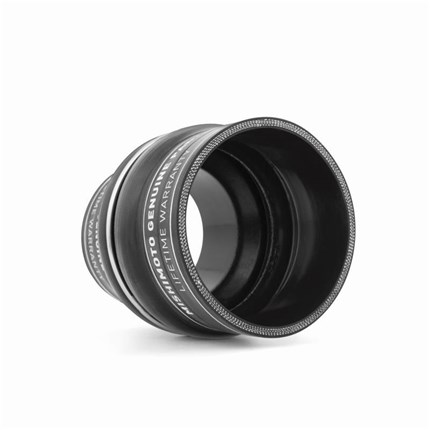

• DuraCore™ technology provides superior resistance to heat, pressure, fuel, and oil
• Mishimoto Constant Tension T-Bolt Clamps
• Sleek Silver or Stealth Black intercooler options available
• Mishimoto Lifetime Warranty

Tech Specs:

• INSTALLATION TORQUE SPECS 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
  These clamps have an operating range of 18-35 in-lbs (2-4N*M).
  Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
• PIPE DIAMETER 3.5"
• CONSTANT TENSION T-BOLT CLAMPS SPECS (1) 3.0" Constant Tension T-Bolt Clamp
  (1) 3.25" Constant Tension T-Bolt Clamp
  (6) 4.0" Constant Tension T-Bolt Clamps
• SILICONE BOOTS WITH DURACORE SPECS Boot 1: 2.72", 3.50"
  Boot 2: 3.50"
  Boot 3: 3.50"
  Boot 4: 3.00", 3.50"
• CORE THICKNESS 2.76"
• TANK WALL THICKNESS 4 mm
• OUTLET 3.5"
• CORE LENGTH 27.36
• CORE HEIGHT 25.57
• CORE WIDTH 2.76
• INLET 3.5"
• CORE SIZE 27.36" x 25.57"
• OVERALL WIDTH 6.2"
• OVERALL HEIGHT 27.6"
• OVERALL LENGTH 40.3"
• CONSTRUCTION Bar-and-Plate

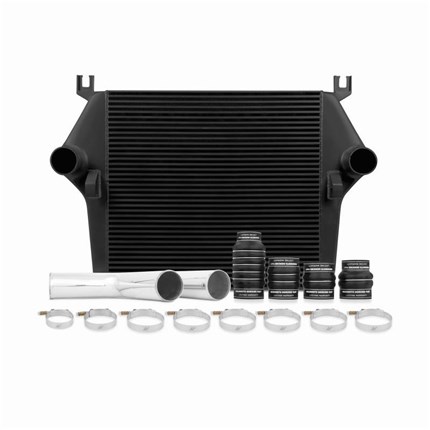

Includes:

• (1)Mishimoto Intercooler

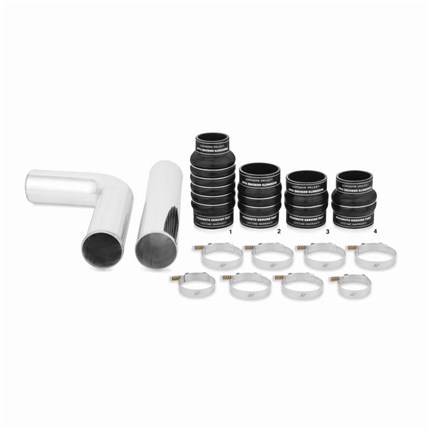

• (2) Aluminum Intercooler Pipes
• (4) Silicone Boots with DuraCore™ Technology
• (8) Constant Tension T-Bolt Clamps
• (4) M6 x 1.0 x 16 Flange Head Bolts
• (2) Aluminum Mishimoto M Logo Badges
• Mishimoto Lifetime Warranty

Notes: This product requires minor trimming of the upper radiator support for installation.
