Mishimoto Intercooler w/Pipe & Boot Kit - BLACK - 06-10 Duramax

Thoroughbred Sku #: MIMMMINT-DMAX-06KBK
Manufacturer Sku #: MMINT-DMAX-06KBK

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,766.95

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: Intercooler w/Pipe & Boot Kit - BLACK
Manufacturer: Mishimoto
Manufacturer Part #: MMINT-DMAX-06KBK
Thoroughbred Diesel Part #: MIMMMINT-DMAX-06KBK
Fitment Notes: 2006-2010 GM Duramax

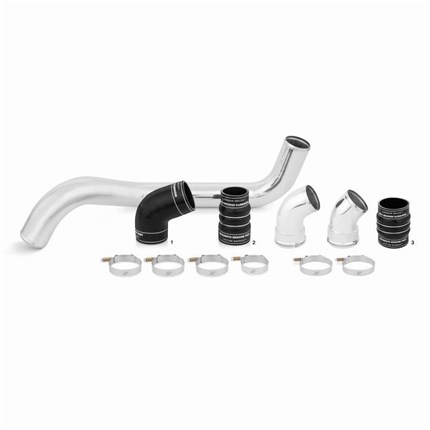

Mishimoto is expanding their line of Duramax performance parts! Fed up with high EGTs and an intercooler setup that isn't keeping up with the demands of your Duramax? The solution is finally here with the Mishimoto 2006-2010 Chevrolet/GMC 6.6L Duramax intercooler kit! This kit includes everything you need to improve airflow, substantially decrease air-charge temperatures, and support your truck at any power level. The Mishimoto intercooler piping is the first key component; our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow. The piping is constructed of mandrel-bent aluminum polished to a flawless finish. This Duramax performance parts kit includes Mishimoto silicone boots with DuraCore™ technology and constant tension T-bolt clamps for accurate and consistent holding power.

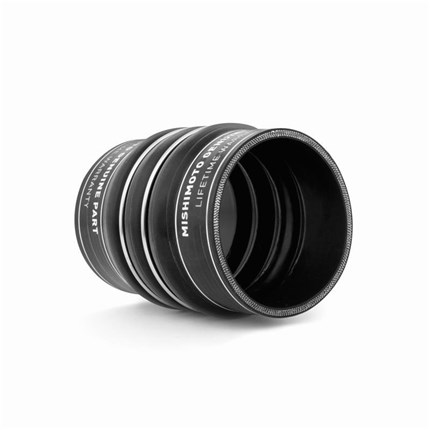

Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. This package is rounded out with the Mishimoto intercooler that features cast aluminum end tanks and a bar-and-plate core, all designed to provide cool, dense air to your engine. The Mishimoto Duramax intercooler features a core volume significantly greater than the factory cooler, allowing for cooler intake temperatures, lower EGTs, and increased boost pressure tolerance. All the components in this kit are engineered to last, just like your truck. The mishimoto 6.6L Duramax intercooler kit is offered in either black or silver, and like all of our Duramax performance parts, comes with Mishimoto Lifetime Warranty.

Features:

  • Direct fit for the 2006–2010 Chrevrolet/GMC 6.6L

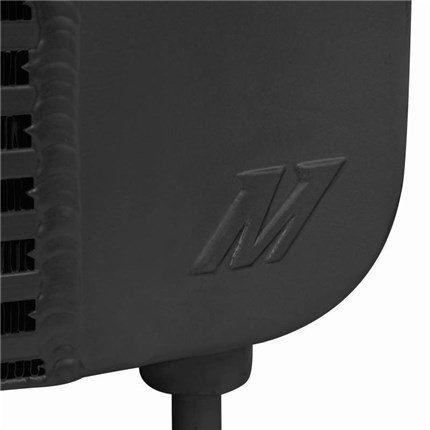

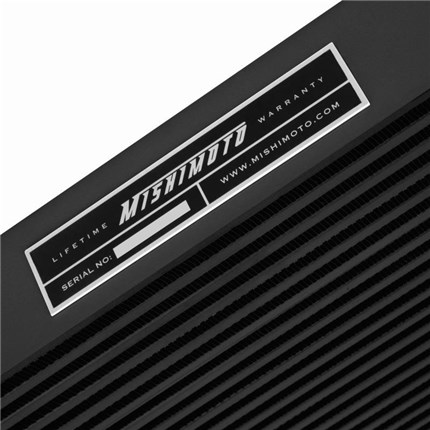

  • Mishimoto intercooler featuring cast aluminum end tanks and a bar-and-plate core
  • Mandrel-bent aluminum polished pipes eliminate restrictive bends
  • Reduces turbo stress and extends life
  • Intercooler available in Sleek Silver and Stealth Black
  • Includes Mishimoto Silicone Boots with DuraCore™ technology and Mishimoto Constant Tension T-bolt Clamps
  • Provides improved airflow and lowers intake air temperatures
  • Mishimoto Lifetime Warranty

Tech Specs:

  • INSTALLATION TORQUE SPECS 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
    These clamps have an operating range of 18-35 in-lbs (2-4N*M).
    Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
  • PIPE DIAMETER 3.0" (hot-side)
    3.5" (cold-side)
  • CONSTANT TENSION T-BOLT CLAMPS SPECS (1) 2.75" Constant Tension T-Bolt Clamps
    (3) 3.25" Constant Tension T-Bolt Clamps
    (2) 4.0" Constant Tension T-Bolt Clamps
  • SILICONE BOOTS WITH DURACORE SPECS Boot 1: 2.44", 3.00"
    Boot 2: 3.00"
    Boot 2: 3.50"
  • CORE THICKNESS 2.76"
  • TANK WALL THICKNESS 4 mm
  • OUTLET Quick Disconnect
  • CORE LENGTH 37.2"
  • CORE HEIGHT 19.84"
  • CORE WIDTH 2.76"
  • INLET 3"
  • CORE SIZE 37.20" x 19.84"
  • OVERALL WIDTH 9.1"
  • OVERALL HEIGHT 23.4"
  • OVERALL LENGTH 46"
  • CONSTRUCTION Bar-and-Plate

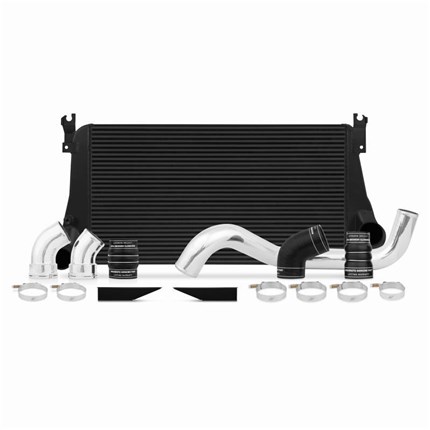

Includes:

  • (1) Mishimoto Intercooler
  • (2) Lower AC Condenser Brackets
  • (2) Aluminum Spacers
  • (1) M8 x 1.25 Bolt & Washer
  • (2) Aluminum Intercooler Pipes w/ CNC Quick-Disconnect Flanges
  • (1) Aluminum Intercooler Pipe
  • (3) Silicone Boots with DuraCore™ Technology
  • (6) Constant Tension T-Bolt Clamps
  • (2) Aluminum Mishimoto M Logo Badges
  • Mishimoto Lifetime Warranty
