Mishimoto Intercooler w/Pipe & Boot Kit - SILVER - 02-04.5 Duramax

Mishimoto is expanding their line of Duramax performance parts! Are you fed up with high EGTs and an intercooler setup that isn't keeping up with the demands of your Duramax? The solution is finally here with the Mishimoto Chevrolet/GMC 6.6L Duramax intercooler kit! This kit includes everything you need to improve airflow, substantially decrease air-charge temperatures, and support your truck at any power level. The first key component is the Mishimoto intercooler piping. Our engineers have maximized airflow by eliminating restrictive bends, resulting in a smooth and unimpeded airflow. The piping is constructed of mandrel bent aluminum polished to a flawless finish. For efficient holding power this kit includes Mishimoto silicone boots with DuraCore™ technology and constant-tension T-bolt clamps. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. This package is rounded out with the Mishimoto intercooler featuring cast aluminum end tanks and a bar-and-plate core, all designed to allow for cool, dense air to your engine. The Mishimoto Duramax intercooler features greater core volume than the factory cooler; this provides reduced air-charge temperatures and EGTs. All the components in this kit are engineered to last, just like your truck. Offered with either a black or silver core, the Mishimoto 6.6L Duramax intercooler kit, like all of our Duramax performance parts, is protected by our signature Lifetime Warranty.

Features:

• Direct fit for the 2002–2004.5 Chrevrolet/GMC 6.6L

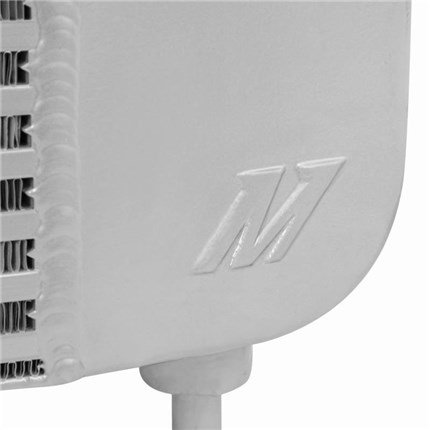

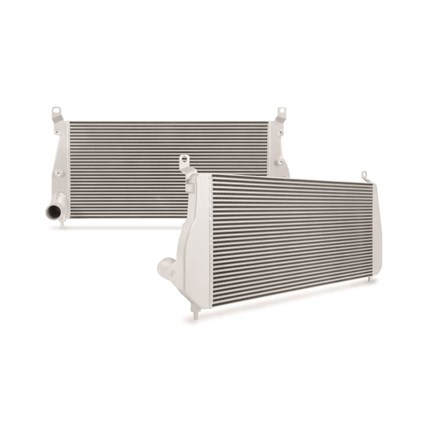

• Mishimoto intercooler featuring cast aluminum end tanks and a bar-and-plate core
• Mandrel-bent aluminum polished pipes eliminate restrictive bends
• Reduces turbo stress and extends life
• Intercooler available in Sleek Silver and Stealth Black

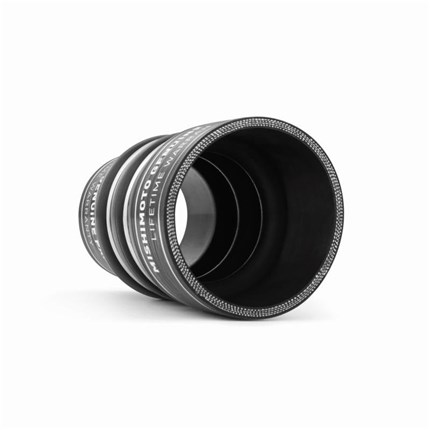

• Includes Mishimoto Silicone Boots with DuraCore™ technology and Mishimoto Constant-Tension T-bolt Clamps
• Provides improved airflow and lowers intake air temperatures
• Mishimoto Lifetime Warranty

Tech Specs:

• INSTALLATION TORQUE SPECS 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
  These clamps have an operating range of 18-35 in-lbs (2-4N*M).
  Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
• PIPE DIAMETER 3"
• CONSTANT TENSION T-BOLT CLAMPS SPECS (2) 2.75" Constant Tension T-Bolt Clamps
  (6) 3.25" Constant Tension T-Bolt Clamps
• SILICONE BOOTS WITH DURACORE SPECS Boot 1: 2.30", 3.00"
  Boot 2: 2.30", 3.00"
  Boot 3: 3.00"
  Boot 4: 3.00"
• CORE THICKNESS 2.05"
• TANK WALL THICKNESS 4mm
• OUTLET 3"
• CORE LENGTH 38.27"
• CORE HEIGHT 18.86"
• CORE WIDTH 2.05"
• INLET 3"
• CORE SIZE 38.27" x 18.86"
• OVERALL WIDTH 8.2"
• OVERALL HEIGHT 23.4"
• OVERALL LENGTH 45.6"
• CONSTRUCTION Bar-and-Plate

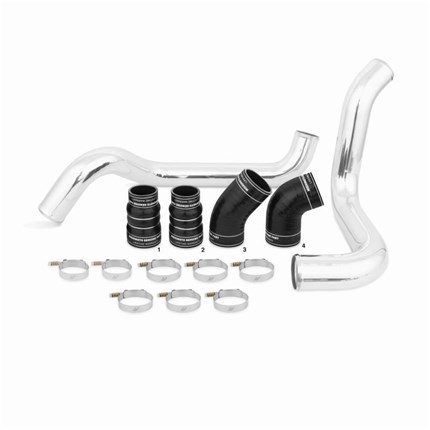

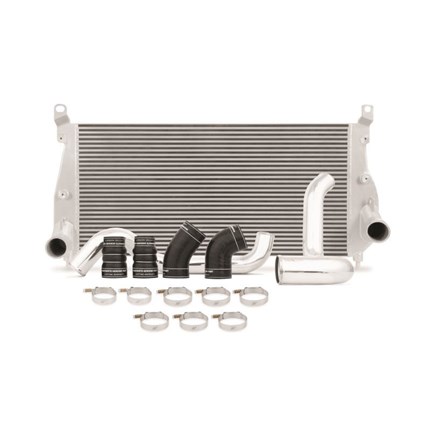

Includes:

• (1) Mishimoto Intercooler
• (2) Aluminum Intercooler Pipes
• (4) Silicone Boots with DuraCore™ Technology
• (8) Constant Tension T-Bolt Clamps
• (2) Aluminum Mishimoto M Logo Badges
• Mishimoto Lifetime Warranty
