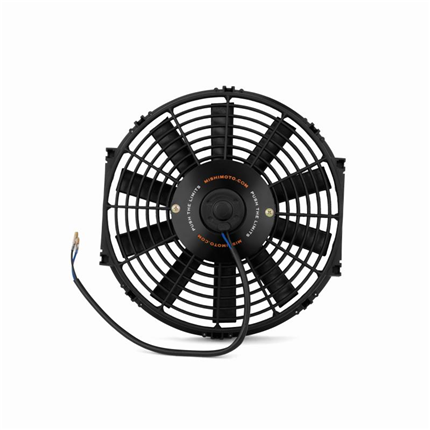

Mishimoto Slim Universal Electric Fan

Thoroughbred Sku #: MIMUNIVERSALELECTRICFAN

Select a Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

There are no vehicles for this group item.

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Universal Applications, Ford Powerstroke, GM Duramax and Dodge Cummins

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
Moshimoto

View More Products From

Mishimoto

Product Details

Product Name: Universal Electric Fan
Manufacturer: Mishimoto
Application: Fits Most Diesels

These fans can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit.

10" Tech Specs:

  • CFM: 850.1
  • Fan Diameter: 255mm
  • Fan RPM: 2351
  • Number of Blades: 10
  • Current: ~6.8A
  • Voltage: 12.3V
  • Amps: 5.1
  • Velocity Ft/Min: 660
  • Inlet Pressure While Tested: -0.03
  • Air Temp While Tested: 62.2° F
  • Limited Liftetime Warranty

14" Tech Specs:

  • CFM: 954.1
  • Fan Diameter: 328mm
  • Fan RPM: 2290
  • Number of Blades: 10
  • Current: ~5.5A
  • Volts: 12.3V
  • Amps: 5.6
  • Velocity Ft/Min: 740
  • Inlet Pressure While Tested: -0.038
  • Air Temp While Tested: 62.1° F
  • Limited Lifetime Warranty

12" Tech Specs:

  • CFM: 933.5
  • Fan Diameter: 280mm
  • Fan RPM: 2095
  • Number of Blades: 10Current: ~8A
  • Volts: 12.25V
  • Amps: 5.7
  • Velocity Ft/Min: 724
  • Inlet Pressure While Tested: -0.04
  • Air Temp While Tested: 62.6° F
  • Limited Lifetime Warranty

16" Tech Specs:

  • CFM: 1934
  • Fan Diameter: 385mm
  • Fan RPM: 2041
  • Number of Blades: 10
  • Current: ~13.5
  • Volts: 12.14V
  • Amps: 10.8
  • Velocity Ft/Min: 1500
  • Inlet Pressure While Tested: -0.198
  • Air Temp While Tested: 61° F
  • Limited Lifetime Warranty

Reviews

Submit a question

  • Is it a pusher fan? Does it include what is necessary to mount it and wire it? Thank you

    Neil Crane | 7/24/2023

    Yes, No(1) Mishimoto Fan
    (5) Mounting Tabs

  • Does this pug in play or do you have to do a bunch of wiring to hook it up and does it mount right up to the radiator or do you have to cut things up to make it fit

    Arthur Kensington | 1/24/2020

    This is a universal kit. So there will be some wiring etc to do.
