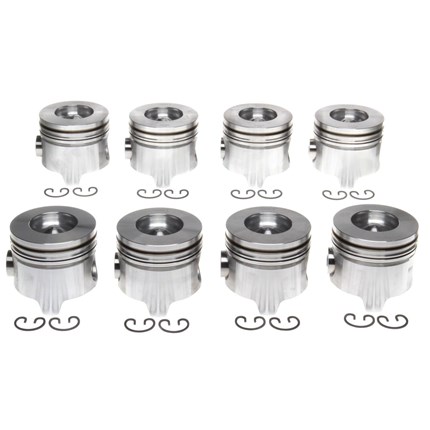

Mahle Piston Set (.010 Reduced Compression) - 94-03 Ford Powerstroke 7.3L

Product Name: Mahle Piston Set (.010 Reduced Compression) - 94-03 Ford Powerstroke 7.3L
Manufacturer: Mahle
Manufacturer Part #: 224-3409.010
Thoroughbred Diesel Part #: MCI224-3409.010
Fitment Notes: 1994-2003 Ford Powerstroke 7.3L

MAHLE pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.

Mahle Piston Set Features:

• OE-quality construction from a leading global piston manufacturer
• Compensated ring grooves for proper ring loading and oil control
• Expansion-controlled design for tight clearances and reduced engine noise
• Improves durability, efficiency, and emissions performance
• Includes pre-installed piston rings for convenience

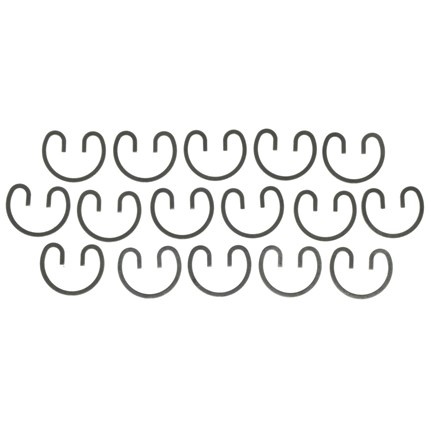

• Wrist pins and retaining clips included
• Ready-to-install design saves assembly time
• For more on Mahle call us at 1-859-737-4966.

Specs:

• Quantity per application 8 Each
• Oversized Yes
• Top Compression Ring Thickness 3.00 mm
• Second Compression Ring Thickness 2.00 mm
• Oil Ring Thickness 3.40 mm
• Piston Pin Outside Diameter 33.233 mm
• Piston Head Type Bowl
• Piston Material Aluminium
• Compression Height (mm) 54.15
• With Piston Rings No
• Piston oversize 0.010 in
• Coated Skirt No
• Piston Item Grade OE Replacement
• Warranty 12 Months
