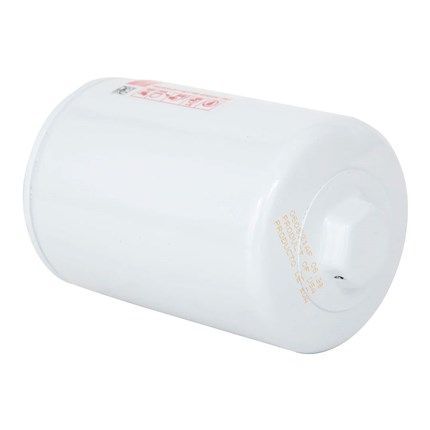

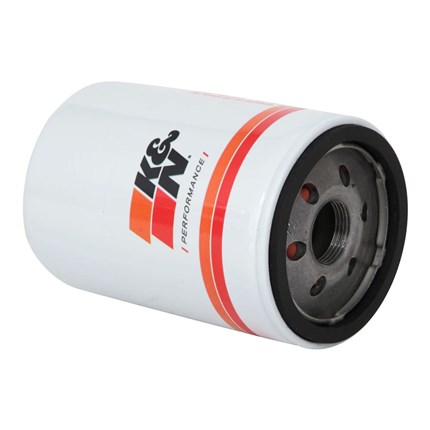

K&N Oil Filter HP-2012 - 2020-2026 GM 6.6L Duramax L5P

Product Name: K&N Oil Filter HP-2012 - 2020-2026 GM 6.6L Duramax L5P
Manufacturer: K&N
Manufacturer Part #: HP-2012
Thoroughbred Diesel Part #: KANHP-2012
Fitment Notes: 2020-2026 GM 6.6L Duramax L5P

K&N premium oil filters are meticulously engineered to offer outstanding filtration and engine protection. Designed to operate with all synthetic, conventional, and blended motor oils, K&N's pleated synthetic-blend filtration media helps to shield your engine from contaminants and ensure a consistent flow of oil. The heavy-duty canister is engineered to be exceptionally durable, and a one-inch welded hex nut can be used for quick and easy filter removal. Each filter is specifically designed to withstand the service intervals recommended by vehicle manufacturers, and is protected by the K&N 1-Year Limited Warranty.

Cross References

• Champ Labs. PH10063
• Champ Labs. PH1500

K&N Oil Filter Features:

• Designed to allow high flow rates and a consistent flow of oil to your engine
• Pleated synthetic-blend filtration media removes most harmful contaminants
• Fast and easy Wrench-Off removal using the welded one-inch hex nut
• High capacity to withstand the service intervals recommended by vehicle manufacturers
• Heavy-duty canister for outstanding durability
• Laboratory tested to ensure excellent capacity, efficiency, and mechanical strength
• Designed to operate with all synthetic, conventional, and blended motor oils
• 1-Year Limited Warranty
• For more information on K&N call us at 1-859-737-4966

Specifications

• Anti Drain Back Valve Yes
• Bypass Valve Yes
• Filter Material High Flow Premium Media
• Gasket Material High Temperature Nitrile
• Height 4.78 in (121 mm)
• Outside Diameter 3 in (76 mm)
• PSI Relief Valve 11-17
• Removal Nut Yes
• Style Spin-On
• Thread Specification M22 Special Thread x 1.5
• Product Style Oil Filters
• Weight 0.9 lb (0.4 kg)
• Product Box Height 5.75 in (146 mm)
• Product Box Length 3.19 in (81 mm)
• Product Box Width 3.13 in (79 mm)
• Additional O-Ring Included No
• Removal Nut Size 1 inch
• Warranty 1 Year Limited
