Bostech High Pressure Oil Manifold Cup Removal Tool - 03-07 Ford 6.0L Powerstroke - ISK607

Thoroughbred Sku #: BOTISK607
Manufacturer Sku #: ISK607

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit



Product Details

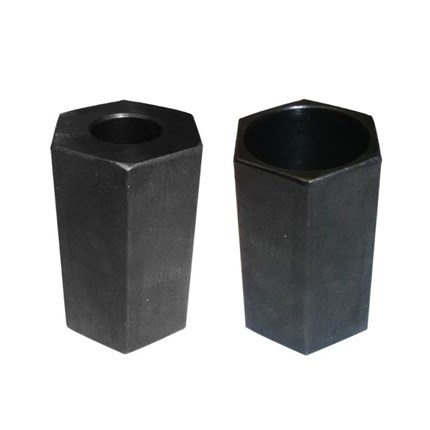

Product Name: High Pressure Oil Manifold Cup Removal Tool
Manufacturer: Bostech
Manufacturer Part #: ISK607
Thoroughbred Diesel Part #: BOTISK607
Fitment Notes: 2003-2007 Ford 6.0L Powerstroke

The Bostech Oil Rail Ball Tube Installation Tool is needed to install Oil Rail Ball Tubes in the Oil Manifold on your 2004.5-2007 Ford 6.0L Powerstroke. This tool also works as an alignment tool.


  • Required for installation of oil rail ball tubes
  • For use on Powerstroke 6.0L engines
  • 13 month unlimited mileage warranty

Thoroughbred Diesel is your source of diesel stock parts for your Ford Diesel. We are also a real diesel repair shop that works on diesel trucks for free advice call toll free at 866-737-4966 or shop now for Ford Powerstroke 6.0L High Pressure Oil Manifold Cup Removal Tool from Bostech. At Thoroughbred Diesel we specialize in stock parts for Ford 6.0L Diesels Trucks so save big bucks by shopping for replacement stock parts at HAVING TROUBLE WITH POWERSTROKE INJECTORS? If the seal of your injectors where they connect to the High Pressure Oil Manifold look like the example pictures above and below than you more than likely have a failed, or failing O ring problem in the High Pressure Oil Manifold itself. High pressure oil in excess of 3,000 psi blasts past the O ring sealing the cup in the High Pressure Oil Manifold and travels along the nipple of the cup into the opening where the injector connects. This eats away at the seal from the top side until it eventually fails. In the example below the seal on the left is New, the seal on the right has been subjected to this condition. As you can see the bulk of the damage is coming from the right which in this case was the top side as it was installed in the injector. This side should not be exposed to any exterior high pressure oil at all. The only place this can come from is the High Pressure Oil Manifold O ring failure. In most cases by the time the problem is diagnosed properly the cup/nipple is damaged beyond being able to be reused also. In the past this is only repairable by replacing the entire High Pressure Oil Manifold as a unit from Ford OEM. We have a source to now be able to sell Brand New kits which consist of (1) Cup/Nipple and O ring #ISK606. You can rebuild both of your High Pressure Oil Manifolds for what it presently will cost you for one OEM replacement. You will need a specialty removal tool #ISK607. Any Technician or Powerstroke enthusiast should have this tool in your toolbox. This is a huge problem with 6.0 powerstroke engines, and has gone virtually unnoticed and misdiagnosed for years. Do yourself a favor, If your replacing injectors anyway, REPLACE the High Pressure Oil Manifold Cup/Nipples & O rings at the same time.
