Icon .75-2.5" Stage 5 Suspension System 2009-2018 Ram 1500 4Wd

Product Name: Icon .75-2.5 Inch Stage 5 Suspension System
Manufacturer: ICON
Manufacturer Part #: K213005
Thoroughbred Diesel Part #: ICOK213005
Fitment Notes: 2009-2018 RAM 1500 4WD

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel Inch through the range of travel. These coilovers are also height adjustable from .75-2.5 Inch allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks with CDC Valve utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

features & Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• ICON CDC Valve allows quick and easy end-user adjustability
• Adjustable coilovers from .75-2.5 Inch of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
• 2.5 Aluminum Series rear shocks with CDCV
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 Inch w/ 4.75 Inch BS / 0mm Offset
• Recommended Aftermarket Tires: 33 Inch x 11.50 Inch (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #99: Air Bags Recommended With Performance Rear Springs If Vehicle Used For Towing
• TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models. Lift height range is .75-2.5 Inch over stock
• TECH NOTE: Not compatible with models equipped with OE air suspension
• Ships in Multiple Boxes

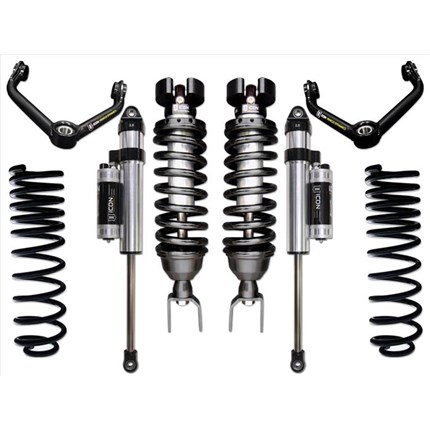

System Components:

• 211000 (QTY: 1) | 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT
• 218550DJ (QTY: 1) | 09-23 RAM 1500 TUBULAR UCA DJ KIT
• 212150 (QTY: 1) | 09-23 RAM 1500 REAR 1.5 Inch DUAL RATE SPRING KIT
• 217715CP (QTY: 1) | 09-18 RAM 1500 0-3 Inch REAR 2.5 VS PB CDCV PAIR
