Icon 2.5" Stage 4 Suspension System 2005-2016 Ford F250/F350

Product Name: Icon 2.5 Inch Stage 4 Suspension System
Manufacturer: ICON
Manufacturer Part #: K62503
Thoroughbred Diesel Part #: ICOK62503
Fitment Notes: 2005-2016 FORD F250/F350

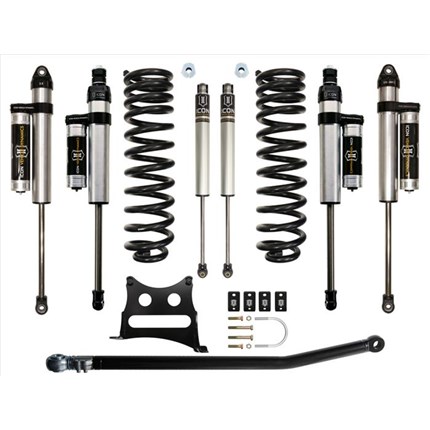

The ICON 2.5 Inch suspension system is a great way to level your 4WD 2005-2016 Ford F250/350 Super Duty while improving ride quality and performance. This Stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 4 System is comprised of dual rate coil springs, alignment cams for adding caster, adjustable track bar w/ bearing, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, and ICON 2.5 Aluminum Series piggyback reservoir shocks front and rear. ICON 2.5 Inch reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

For F-250 applications, a 4 Inch block can be used in place of your factory 2 Inch block, in turn leveling the truck from front to rear, allowing use of ICON Rear Shocks.

features & Benefits

• ICON engineered dual rate coil springs with match tuned performance shocks
• Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8 Inch shafts
• Application Specific Alignment Cams ensure proper Caster alignment
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Adjustable trackbar for optimum front axle centering and minimizing deflection
• Dual steering stabilizer kit for smooth wheel control while driving
• Less body-roll than stock
• Lifetime guarantee that coil springs won’t sag
• No drive shaft modifications required
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

Tech Info:

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 Inch w/ 5.00 Inch Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 Inch w/ 5.25 Inch Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 Inch w/ 5.25 Inch Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35 Inch x 12.50 Inch (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #94: Not Compatible With F-350 Equipped with Wide Track Front Axle
• TECH NOTE: Compatible with 4WD models only
• TECH NOTE: 2005-2016 F-250s require 4 Inch rear blocks with 15 Inch U-bolt kit to sit level with 2.5 Inch lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
• TECH NOTE: Not compatible with F-350 Cab & Chassis models
• TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry on 2008-2016 models
• TECH NOTE: Included rear shocks are compatible with 0-3 Inch of rear lift over stock

System Components:

• 62510 (QTY: 1) | 05-19 FSD FRONT 2.5 Inch DUAL RATE SPRING KIT
• 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
• 65000 (QTY: 1) | 05-22 FSD DUAL STABILIZER KIT
• 36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
• 67700P (QTY: 1) | 05-24 FSD 4WD 0-2.5 Inch FRONT 2.5 VS PB PAIR
• 37705P (QTY: 1) | 99-24 FSD 0-3 Inch REAR 2.5 VS PB PAIR
