Icon 2.5" Stage 3 Suspension System 2014-Up Ram 2500 4Wd

Thoroughbred Sku #: ICOK212543
Manufacturer Sku #: K212543

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Documents - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$3,591.33

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: Icon 2.5 Inch Stage 3 Suspension System
Manufacturer: ICON
Manufacturer Part #: K212543
Thoroughbred Diesel Part #: ICOK212543
Fitment Notes: 2014-UP RAM 2500 4WD

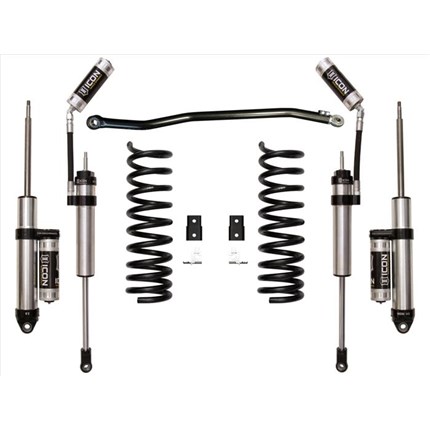

ICON's 2014-UP Ram 2500 4WD 2.5 Inch Stage 3 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, front adjustable track bar as well as 2.5 Aluminum Series reservoir front and rear shocks. This system improves ride quality and performance both on and off road. The ICON stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5 Aluminum Series reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

features & Benefits

  • ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Adjustable track bar with PTFE lined FK bearings
  • Less body roll than stock
  • No drive shaft modifications needed

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 Inch w/ 5.25 Inch BS / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 Inch w/ 5.50 Inch BS / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 Inch w/ 5.50 Inch BS / 12mm Offset
  • Recommended Aftermarket Tires: 35 Inch x 12.50 Inch (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
  • Ships in Multiple Boxes

System Components:

  • 214200 (QTY: 1) | 14-UP RAM 2500 2.5 Inch FRONT DUAL RATE SPRING KIT
  • 214214 (QTY: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
  • 217802P (QTY: 1) | 14-UP RAM 2500 2.5 Inch FRONT 2.5 VS RR PAIR
  • 217704P (QTY: 1) | 14-UP RAM 2500 0 Inch COIL / 3 Inch AIR RIDE REAR 2.5 VS PB PAIR
