Icon 2.5" Stage 1 Suspension System 2003-2012 Ram 2500/3500 4Wd

Thoroughbred Sku #: ICOK212501
Manufacturer Sku #: K212501

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Documents - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,435.94

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

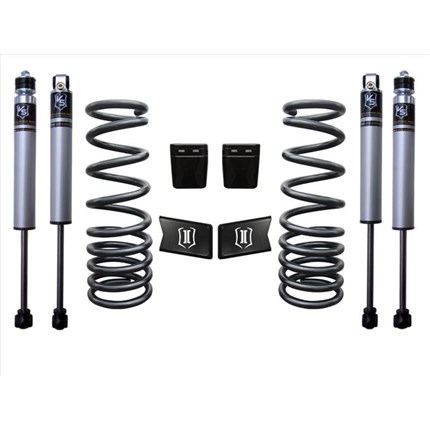

Product Name: Icon 2.5 Inch Stage 1 Suspension System
Manufacturer: ICON
Manufacturer Part #: K212501
Thoroughbred Diesel Part #: ICOK212501
Fitment Notes: 2003-2012 RAM 2500/3500 4WD

2003-2012 Ram 2500/3500 2.5 Inch Stage 1 Suspension System is ICON's entry level system. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 1 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, and ICON 2.0 Aluminum Series internal reservoir shocks. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

features & Benefits

  • ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Level stance front to rear
  • Less body roll than stock
  • No drive shaft modifications needed

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 Inch w/ 5.25 Inch BS / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 Inch w/ 5.50 Inch BS / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 Inch w/ 5.50 Inch BS / 12mm Offset
  • Recommended Aftermarket Tires: 33 Inch x 11.50 Inch (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
  • APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in Multiple Boxes

System Components:

  • 212500 (QTY: 1) | 03-12 RAM HD 4WD 2.5 Inch DUAL RATE SPRING KIT
  • 216521 (QTY: 2) | 03-12 RAM HD 2.5 Inch FRONT 2.0 VS IR
  • 216522 (QTY: 2) | 03-12 RAM HD 0-3 Inch REAR 2.0 VS IR
