HSP Diesel Max Air Flow Bundle Kit - 20-25 Chevy & GMC L5P Duramax

Product Name: HSP Diesel Max Air Flow Bundle Kit - 20-25 Chevy & GMC L5P Duramax
Manufacturer: HSP Diesel
Thoroughbred Diesel Part #: HSPMAXAIR2025GM
Fitment Notes: 2020-2025 Chevy & GMC L5P Duramax

HSP DIESEL MAX AIR FLOW BUNDLE KIT FOR 2020-2025 CHEVROLET / GMC L5P DURAMAX

The HSP Diesel Max Air Flow Bundle Kit for 2020-2025 Chevrolet and GMC L5P Duramax trucks combines HSP’s most popular airflow upgrades into one complete performance package. Designed to improve reliability, airflow efficiency, turbo response, and overall engine bay appearance, this bundle is ideal for stock trucks, tuned applications, towing setups, and performance builds alike.

By upgrading the factory hot side pipe, cold side intercooler pipe, and intake system together, this package eliminates multiple OEM restriction and failure points while maximizing airflow from the intake all the way through the intercooler system.

Why Upgrade to the HSP Max Air Flow Bundle?

The factory L5P intake and intercooler piping system is designed around cost and packaging constraints, leaving several weak points in both durability and airflow efficiency. Factory rubber intercooler tubes are prone to swelling, splitting, and leaking under increased boost pressure and heat cycles, while the restrictive intake system limits airflow potential.

The HSP Max Air Flow Bundle replaces those restrictive and failure-prone components with mandrel-bent aluminized steel tubing, reinforced silicone boots, billet aluminum couplers, and HSP’s high-flow MEGA filter intake system. The result is improved reliability, better throttle response, faster turbo spool-up, increased airflow, and a cleaner engine bay appearance.

What Makes the HSP Max Air Flow Bundle Different?

• Complete Charge Air System Upgrade: Upgrades both the hot side and cold side intercooler piping for maximum airflow efficiency and reliability.
• High-Flow Cold Air Intake: Features 4.5” mandrel-bent tubing and HSP’s MEGA filter for substantially improved airflow over the factory intake system.
• Mandrel-Bent Tubing: Smooth bends reduce airflow turbulence and restriction while improving turbo efficiency.
• Billet Aluminum Couplers: Eliminates common OEM weak points while improving durability under high boost conditions.
• Heavy-Duty Silicone Boots & Stainless T-Bolt Clamps: Designed to withstand elevated boost pressure and repeated heat cycles.
• Custom Powder Coat Options: Available in multiple colors to match your engine bay setup.
• No Tuning Required: Intake system retains factory MAF calibration for proper drivability and operation.

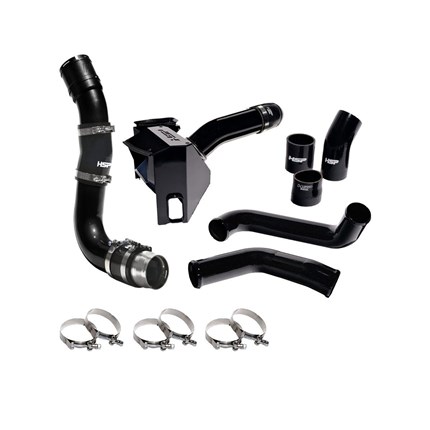

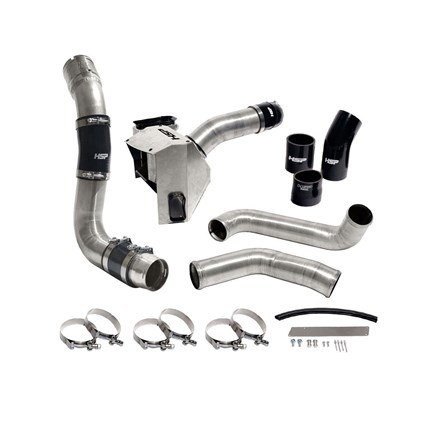

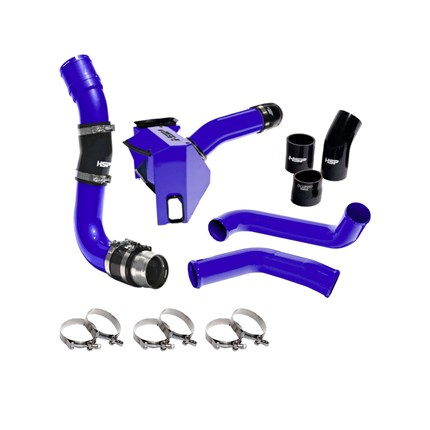

What’s Included

• 1x L5P 20-24 Upper Hotside Tube (HSP-IN-206-U)
• 1x L5P 20-24 Lower Hotside Tube (HSP-IN-206-L)
• 1x 3IN 43 Degree Boot (RFB-857-RFAB)
• 5x 3IN T-Bolt Clamp (RFB-422-RFAB)
• 1x 2.75IN - 3IN Reducer Boot (RFB-856-RFAB)
• 1x 2.75 T-Bolt Clamp (RFB-492-RFAB)
• 1x Coldside Pipe (HSP-IN-870)
• 1x Welded Throttle Body Coupler (HSP-IN-873)
• 1x 20-24 L5P Throttle Body Coupler (RFB-873-RFAB)
• 1x 3.5" Aluminum 60° Bend (RFB-310-RFAB)
• 1x 20-24 L5P Intercooler Coupler (RFB-872-RFAB)
• 4x 3.5" T-Bolt Clamp (RFB-423-RFAB)
• 1x 3.5" x 4" Straight Boot (RFB-871-RFAB)
• 1x 3.5" x 3.5" 18° Angled Boot (RFB-875-RFAB)
• 1x L5P 2020-2025 Cold Air Intake Tube (HSP-IN-155)
• 1x L5P 2020-2025 Heat Shield Box (HSP-IN-738)
• 1x L5P 2020-2025 Intake Lid (HSP-IN-738-1)
• 1x L5P Intake Kit (HSP-KIT-021-HSP)
• 1x L5P 2020 Factory Plug Kit (HSP-KIT-FP-021-HSP)
• 1x MEGA 4.5" Straight Air Filter (RFB-514-1-RFAB)

Vehicle Fitment

• 2020-2025 Chevrolet Silverado 2500HD / 3500HD w/ L5P Duramax
• 2020-2025 GMC Sierra 2500HD / 3500HD w/ L5P Duramax

Air Filter Life System (AFLS) Disable Procedure

Some 2020-2025 L5P Duramax trucks may require disabling the factory Air Filter Life System to prevent false “Change Air Filter” alerts caused by the increased airflow from the HSP intake system.

1. On the Driver Information Center, open the Options menu and select Info Page Options.
2. Verify that Air Filter Life is enabled.
3. Navigate to the Info section and select Air Filter Life.
4. Select Disable.
5. This disables the alert, which cannot recalibrate for increased airflow.
6. Disabling the alert has no effect on vehicle operation.

OEM Replacement Reference

• Replaces GM Cold Side Pipe Part #84682179

HSP Diesel Max Air Flow Bundle Kit Features:

• Improved airflow throughout the entire intake and intercooler system
• Faster turbo spool-up and improved throttle response
• Reduced airflow restriction and turbulence
• Upgraded reliability over factory rubber piping
• Heavy-duty reinforced silicone boots
• Large 4.5” MEGA filter for increased airflow capacity
• Cleaner, more aggressive engine bay appearance
• Direct bolt-on installation
• Custom powder coat options available
• No tuning required
• For more information on HSP Diesel call us at 1-859-737-4966

Our Warranty

HSP "No BS" Limited Lifetime Warranty

At HSP, we believe in our products and stand firmly behind every component that leaves our facility. For years, we've gone above and beyond to support our customers—even before having a formal policy in place. Our No BS Limited Lifetime Warranty puts that same commitment in writing, giving you confidence in every HSP product you install.
