DieselSite Head Stud Kit 1992-2000 GM 6.5L

Product Name: DieselSite Head Stud Kit 1992-2000 GM 6.5L
Manufacturer: DieselSite
Manufacturer Part #: HEADSTUD65
Thoroughbred Diesel Part #: DSTHEADSTUD65
Fitment Notes: 1992-2000 GM 6.5L

Use Dieselsite 6.5 Head Studs on any 6.2 / 6.5L vehicle.

INSTALLATION FOR HEAD STUD KITS

• 1. Inspect all hardware prior to installation. Look for defects or shipping damage, plus proper fit, length and dimension.
• 2. To ensure proper thread engagement and accurate torque readings, clean ALL threads in the block. Chase if necessary with a Thread Chaser.
• 3. After apply a liberal amount of thread sealant to the course thread of each head stud, screw heads into the block "HAND TIGHT ONLY" Use Allen key drive only to get stud past small restriction in the threads.

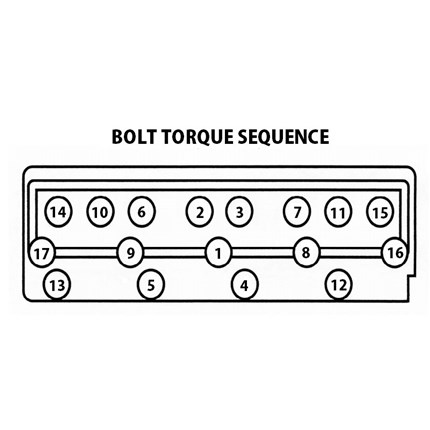

• 4. Following the factory recommended torque sequence, tighten each nut to 20 lbs ft.
• 5. Then, again in sequence, tighten the nuts in 10 lb ft steps to a maximum of 90 lbs ft.

DieselSite Head Stud Kit Features:

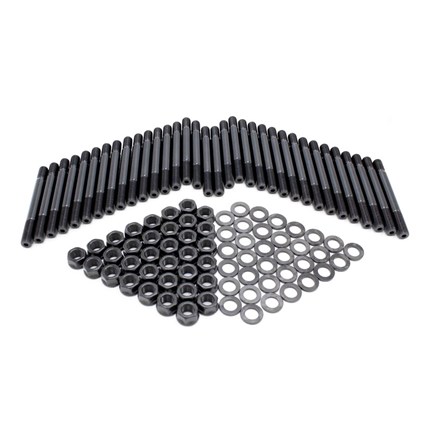

• 34 Dieselsite Head Studs
• 34 Dieselsite 6-point nuts
• 34 Dieselsite Hardened Washers

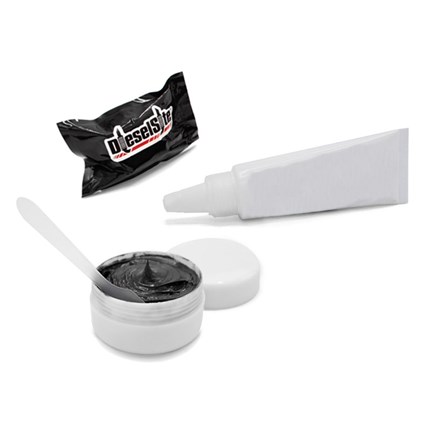

• 1 Container of Dieselsite Fastener Assembly Lubricant
• 1 Tube of Thread Sealant
• For more information on DieselSite call us at 1-859-737-4966
