Garrett 757105-5035S Turbocharger CHRA - Caterpillar C15

Product Name: Garrett 757105-5035S Turbocharger CHRA - Caterpillar C15
Manufacturer: Garrett
Manufacturer Part #: 7571055035S
Thoroughbred Diesel Part #: GAR7571055035S

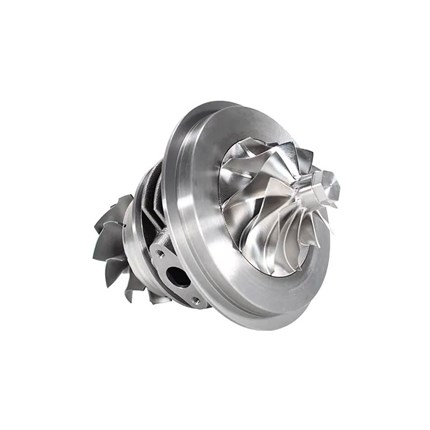

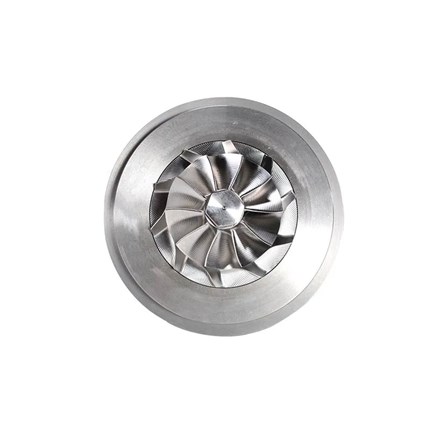

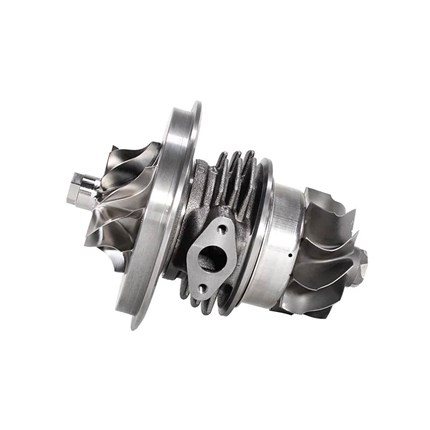

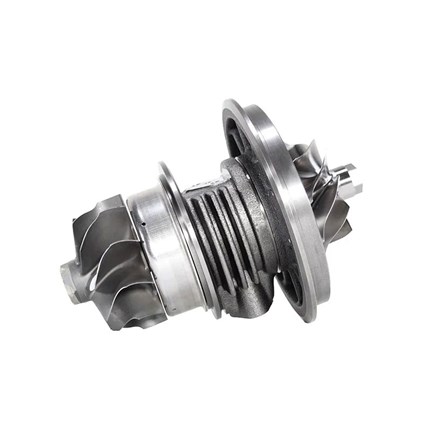

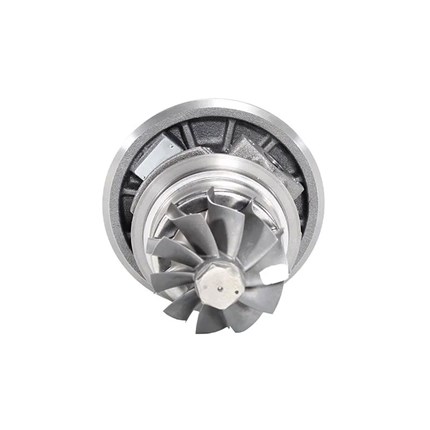

The Garrett 757105-5035S Turbocharger CHRA is a genuine Garrett Center Housing Rotating Assembly (CHRA) designed for the Caterpillar C15 15.2L diesel engine. This cartridge is used in Garrett GTA5518BR turbocharger applications and is designed to replace the wear-prone center section of the original turbo while allowing the existing compressor and turbine housings to be reused. The 757105-5035S is associated with 2003-2008 C15 applications, including engines commonly rated around 475 HP.

OEM Cross References:

• 171-025-6627, 171-025-6784, 1710256627, 1710256784, 757105-0016, 757105-0024, 757105-0035, 757105-5016, 757105-5024, 757105-5024S, 757105-5035, 757105-5035S, 757105-9016, 757105-9024, 757105-9035, 7571050016, 7571050024, 7571050035, 7571055016, 7571055024, 7571055024S, 7571055035, 7571055035S, 7571059016, 7571059024, 7571059035, AIR757105-5035S, AIR7571055035S, CHRA, CAT757105-5035S, GAR7571055035S, CAT7571055035S, P318941G

Garrett Features:

• Genuine Garrett turbocharger CHRA
• Designed for Caterpillar C15 15.2L
• Fits GTA5518BR turbocharger applications
• Replaces the complete center rotating assembly
• Includes the turbocharger's internal rotating components, bearings, and seals
• Allows reuse of the original compressor and turbine housings when they are serviceable
• Helps restore turbocharger performance without replacing the complete turbo
• OEM-quality Garrett construction
• Designed for demanding heavy-duty diesel applications
• Commonly used on C15 engines around 475 HP
• Professional installation is recommended
• Does not include the complete turbocharger housings
• Wastegate/actuator components from the original turbo must be reused or separately replaced, where applicable
