Fleece All Lights On Module - 2007-2017 Toyota Tundra

Product Name: Fleece All Lights On Module - 2007-2017 Toyota Tundra
Manufacturer: Fleece
Manufacturer Part #: FPE-ALO-TUNDRA-0717
Thoroughbred Diesel Part #: FPE-ALO-TUNDRA-0717
Fitment Notes: 2007-2017 Toyota Tundra

Brighten up your driving experience with this simple upgrade inside your underhood relay box. Simply install the All Lights On module to allow your high-beams, low-beams and fog lamps to simultaneously illuminate the road ahead. Once installed the All Lights On module will keep your fog lamps on when you turn ON your high-beams. When the high-beams are NOT turned on your low-beams and fog lights will function normally.

Installation

1. Open the hood and remove the relay panel cover.

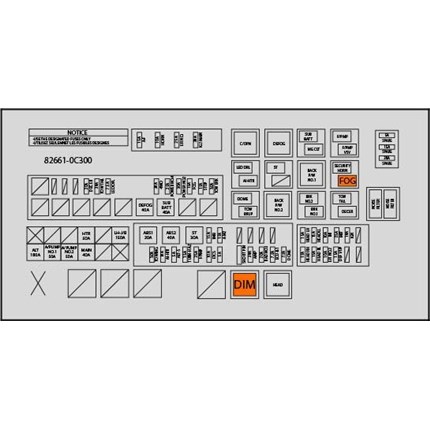

2. Remove the relays labeled: FOG and DIM

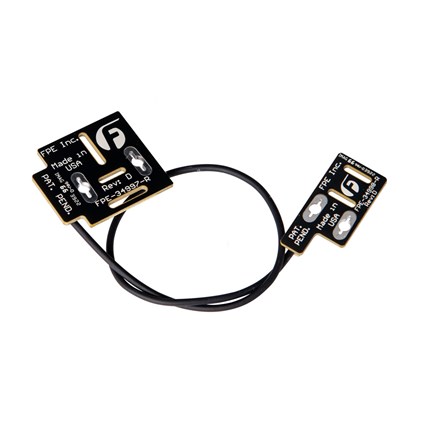

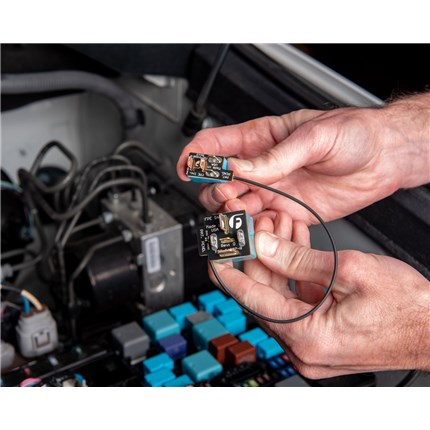

3. Insert the relays through the All Lights On boards with the wire connection facing towards the top of the relay.  The board will make a firm connection with the relay.
4. Reinstall the two relays back into their original location and install the relay panel cover.

Operation

MY2007-2013 (Separate high and low bulbs): High beams, driving lights, and fog lights all on when high beams are enabled.

MY2014-2017 (Dual filament bulbs): High beams and fog lights on when high beams are enabled.

Fleece All Lights On Module Features:

• Allow your high-beams, low-beams and fog lamps to simultaneously illuminate the road ahead
• Keep your fog lamps on when you turn ON your high-beams
• When the high-beams are NOT turned on your low-beams and fog lights will function normally
• For more information on Fleece call us at 1-859-737-4966.
