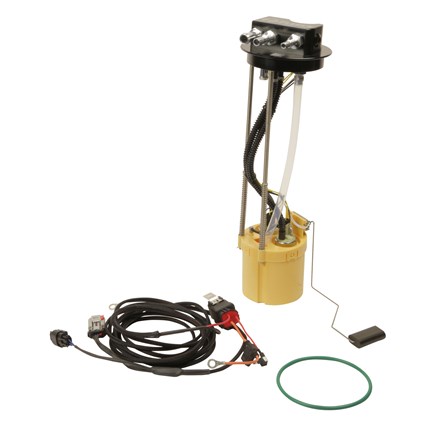

Fleece PowerFlo Lift Pump In-Tank Pump Assembly - 11-16 GM Duramax (Short Bed)

The PowerFlo lift pump is the latest OEM replacement performance lift pump from the diesel experts at Fleece Performance. The PowerFlo is the only in-tank lift pump capable of supporting up to 800 hp! The LML when delivered from the factory relies on vacuum from the CP4 to draw fuel from the tank, this puts extra stress on the injection pump and can lead to premature failure. The PowerFlo lift pump provides positive fuel pressure to the CP4, decreasing strain on the injection pump and supporting up to 800 hp.

Application Notes

We recommend the use of our Auxiliary Heated Fuel Filter Kit, P/N FPE-DMAX-HFFBA-1116 in conjunction with our PowerFlo Lift Pump. The filter kit replaces the factory fuel filter housing with a new filter base, integral high-flow fuel heater, Water-In-Fuel (WIF) sensor, and Donaldson spin-on canister style filter. Our updated fuel filter base mounts in the factory location, providing for a direct factory replacement and the peace of mind to tackle the coldest of days with a high-flow fuel heater.

• PowerFlo Operating Pressure: 10-13 psi at idle
• For use with single fuel tank configurations only
• For use on pickup style trucks only - for cab & chassis verify your pump P/N to the cross-reference table.
• For fitment/use in Titan Fuel Tanks, reference our Fitment Data.  This pump will not fit S&B fuel tanks.
• PowerFlo lift pumps are validated for usage with up to 20% biodiesel.

*Protected under US Patent No. D910,081 and US Trademark Reg. No. 6,878,860

Fleece PowerFlo Lift Pump In-tank Pump Assembly Features:

• Direct OEM In-Tank Replacement:

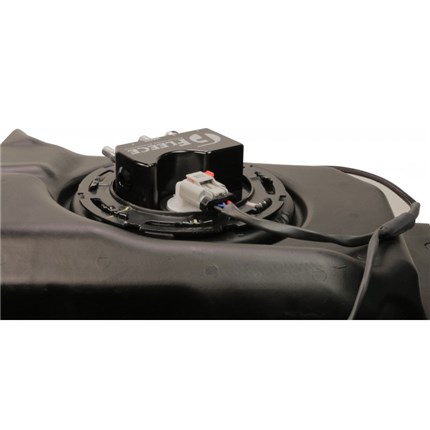

  The PowerFlo Lift Pump retains the factory fuel lines and installs in less than half the time of other high flow lift pumps.

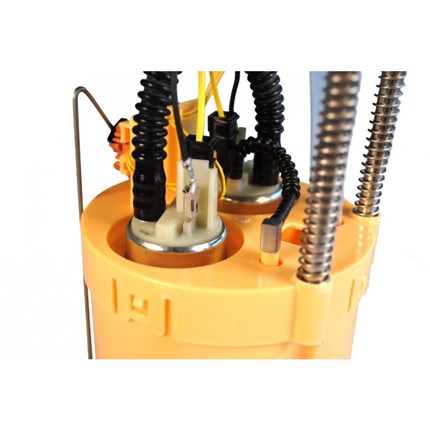

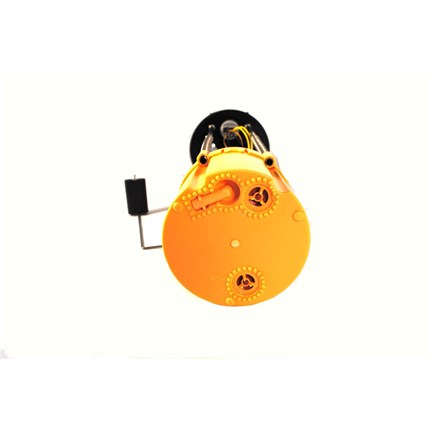

• OEM Quality - Dual Gerotor:
  Two is always better than one, and the PowerFlo delivers with two OEM quality gerotor pumps, increasing flow capacity and increased reliability over the factory pump. Capable of supporting up to 800 hp, including dual CP3 pump configurations.

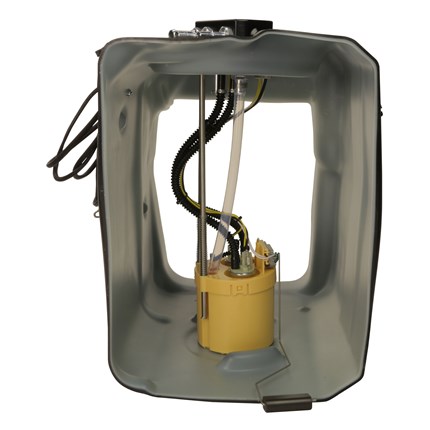

• Seamless Integration:

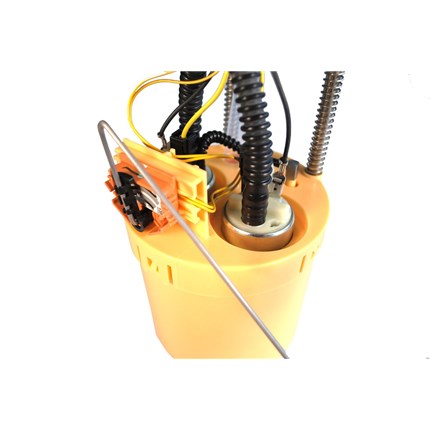

  The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the ¼ tank issues typically encountered when seeking a higher flow lift pump to meet your engine’s need.

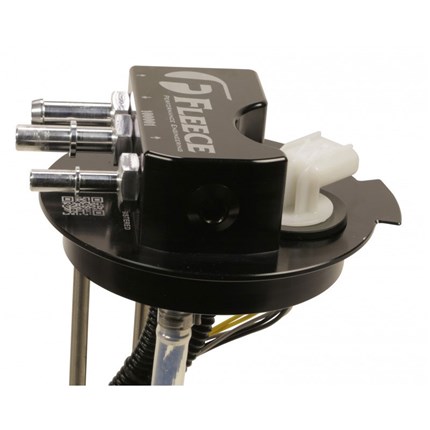

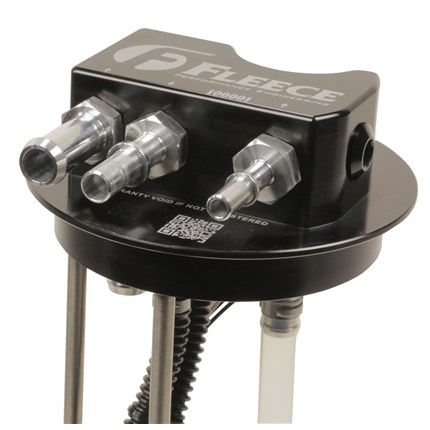

• Aftermarket Capable:
  Want the benefits of the in-tank pump but need to run your own fuel lines or aftermarket filters? The pump outlet and return is threaded to accept a -8 O-ring fitting (3/4"-16 thread).
• EO# D-834-22
• Lifetime Limited Parts Warranty
• For more information on Fleece call us at 1-859-737-4966.

Cross-reference
