Show your support with a Thoroughbred Diesel t-shirt, sweatshirt, or sticker decal.
Thoroughbred Sku #: FPE-PF-FMC-1724-LB
Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit
$809.00
2017 - 2024 Ford F250
2017 - 2024 Ford F350
2017 - 2024 Ford F450
Product Name: Fleece PowerFlo Lift Pump for 2017-2024 Ford 6.7L Power Stroke (long bed)Manufacturer: Fleece Manufacturer Part #: FPE-PF-FMC-1724-LBThoroughbred Diesel Part #: FPE-PF-FMC-1724-LB
The PowerFlo lift pump is the latest drop-in lift pump from the diesel experts at Fleece Performance! Needing to replace your factory pump or looking to upgrade? Our plug-and-play kit requires NO cutting, splicing, or modification of the factory fuel lines or fuel tank. The PowerFlo must be used in combination with our under bed filter kit (FPE-FMC-UBFA-1724) and can not be used with the factory under bed filter assembly. Finish off your setup with our under hood filter base (FPE-FMC-UHFA-1123) for the ultimate fuel delivery setup on your 6.7 Powerstroke!
FeaturesDirect In-Tank Replacement: The PowerFlo lift pump for the 2017-2024 6.7L Power Stroke retains all of the factory fuel lines and installs in less than half the time of other frame mounted high flow lift pumps. Ultra-Quiet - Dual Gerotor: Two is always better than one, and the PowerFlo delivers with two industry proven ultra-quiet gerotor pumps, providing increased flow capacity and the ability to support up to 800 HP! Seamless Integration: The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the ¼ tank issues typically encountered when seeking a higher flow lift pump to meet your engine’s need. This kit requires no cutting, splicing, or modification of the existing fuel lines, harness, or fuel tank and retains all factory fuel control module capability. Aftermarket Capable: Want the benefits of the in-tank pump but need to run your own fuel lines? The pump outlet and return are threaded to accept a -8 O-ring fitting (3/4"-16 thread). This product has been tested and validated for use with 2017-2024 trucks equipped with an S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit.

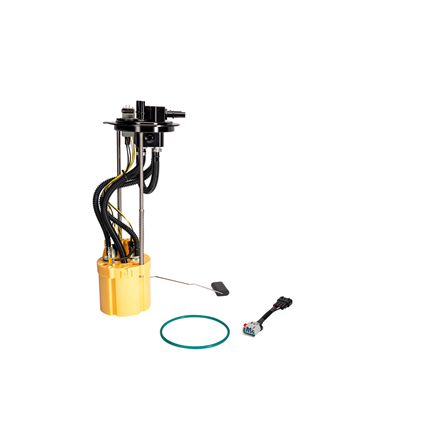

Kit includes:PowerFlo Lift Pump with integral fuel level senderChassis wiring adapter harnessFuel sending unit tank O-ring
Cross-Reference Year FPE Part Number Replaces FORD OE Part Number 2017-2024 FPE-PF-FMC-1724-SB HC3Z-9H307AQ 2017-2024 FPE-PF-FMC-1724-LB HC3Z-9H307AR
Application NotesThe PowerFlo utilizes the stock fuel control module to modulate fuel delivery pressure as required based on engine load.This product MUST be used with the Fleece Performance under bed filter kit (FPE-FMC-UBFA-1724) and is not compatible with the factory under bed filter assembly or FASS Drop-in Series filters.This product has been tested and verified to work with trucks equipped with an S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit.This product has been confirmed to fit Titan aftermarket fuel tanks. PowerFlo lift pumps are validated for usage with up to 20% biodiesel.
You may send in a sound bite to our email , [email protected], we will try to assist you. The PowerFLo Lift Pump is also backed by a LIFETIME WARRANTY!
The kits will include everything needed for the installation
No, air removal.
Yes, the low fuel pressure alarm is always good to have in this model year.
