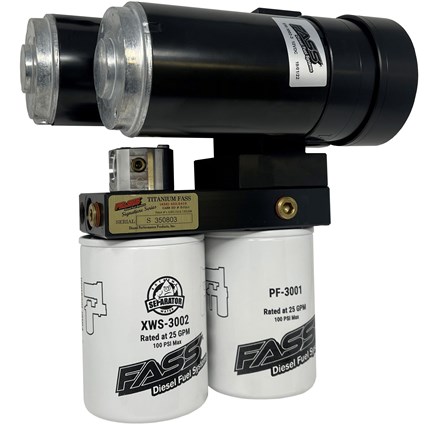

FASS Competition Series

Product Name: FASS Competition Series
Manufacturer: FASS
Thoroughbred Diesel Part #: FASCOMPSERIES
Fitment Notes: Universal

The Competition Series diesel fuel system was specifically designed for high performance diesel applications that demand a large volume of fuel supply.
Each Competition Series System comes equipped with our new High Flow Adjustable Regulator which can provide excellent pressure regulation up to 600 gallons per hour!
The Competition Series utilizes our Extreme Water Separator that removes over 99% of the water that can be found in diesel fuel (3rd party laboratory tested) and filters out damaging particulates down to 2 microns.
This is a universal system and does not come with fuel lines, wiring, or fittings.

• Electrical Requirements: Each motor will need a 30 amp fuse and we recommend 10 gauge wiring to each motor. Each electric motor can draw up to 10 amps max.
• Fuel Line Requirements: A single -12 suction line is recommended while a -8 or -10 engine feed and FASS return line is sufficient.

FASS Competition Series Features:

• Supplied with Our Universal Mounting Bracket.
• Pressure Adjustable from 0-100 PSI.
• -10 AN Inlet, Outlet, and Pressure Regulator Ports.
• Removes Water, Air and Debris from Diesel Fuel.
• 2 Micron Filtration Rating.
• 1/8 NPT Pressure Gauge Port.
• Easier to prime than a mechanical gear pump.
• 30 PSI Maximum Pressure.
• For more on FASS call us at 1-859-737-4966.
