FASS Connect LITE Digital Monitoring System

Product Name: FASS Connect LITE Digital Monitoring System
Manufacturer: FASS
Manufacturer Part #: FC3001K
Thoroughbred Diesel Part #: FASFC3001K

The FASS Connect Lite Digital Monitoring System was designed for a simple, clean installation and provides the ability to monitor your FASS Fuel System’s filter life, fuel pressure, and other drivetrain parameters using powerful wireless technology.

The FASS Connect Lite has 5 sensor inputs that allow the use of a 0–100 PSI pressure sensor, a –40° to 260° temperature sensor, and a 2,000° exhaust gas temperature sensor. In addition to monitoring, it includes 2 relay trigger outputs for powering FASS Fuel Heaters or other accessories such as auxiliary lights directly from the FASS Connect App.

The FASS Connect App can monitor up to 8 parameters at a time—5 sensor inputs, filter life, GPS speed, and battery voltage.

The FASS Connect ECU communicates wirelessly with the FASS Connect App, providing an ultra?clean installation and greater flexibility.

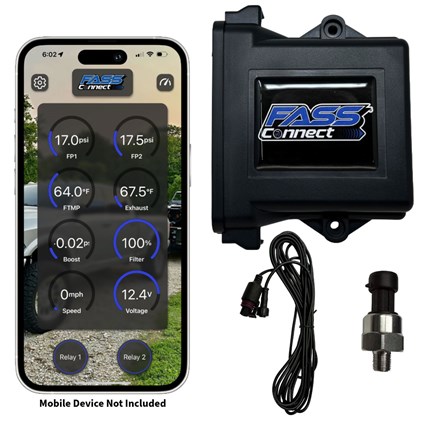

This kit includes the FASS Connect ECU and a 0–100 PSI fuel pressure sensor (additional accessory sensors available separately).

Adding a second fuel pressure sensor allows real?time monitoring of the Extreme Water Separator's filter life, letting you know when service is needed. Sensors can be mixed and matched to create any combination you need for your application.

Includes:

• (1) FASS Connect ECU
• (1) 0–100 PSI Fuel Pressure Sensor
• (1) 15’ Fuel Pressure Sensor Harness
• FASS Connect App available for free and can be downloaded on the Apple App Store or Google Play Store.
• (2) Ring Terminals
• (1) Micro add-a-fuse and corresponding fuse
• (1) Mini add-a-fuse and corresponding fuse

FASS Connect LITE Digital Monitoring System Features:

• Wireless digital monitoring via the FASS Connect App
• Monitors fuel pressure, filter life, and drivetrain parameters
• 5 sensor inputs supporting:
  • 0–100 PSI pressure sensors
  • –40°F to 260°F temperature sensors
  • 2,000°F exhaust gas temperature (EGT) sensors
• App can display up to 8 parameters simultaneously:
  • 5 sensor inputs
  • Filter life
  • GPS speed
  • Battery voltage
• 2 relay trigger outputs for controlling fuel heaters or accessories such as auxiliary lighting
• Wireless ECU enables an ultra-clean installation with no in-cab wiring
• Expandable system—sensors can be mixed and matched for custom setups
• Adding a second fuel pressure sensor enables real-time Extreme Water Separator filter life monitoring
