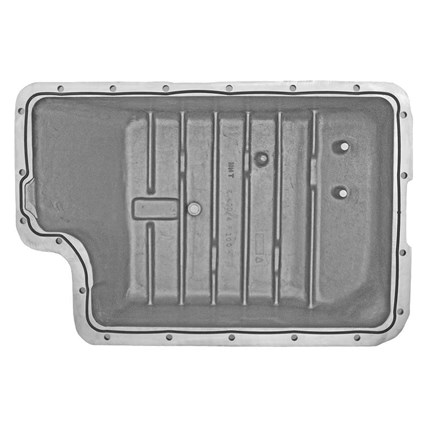

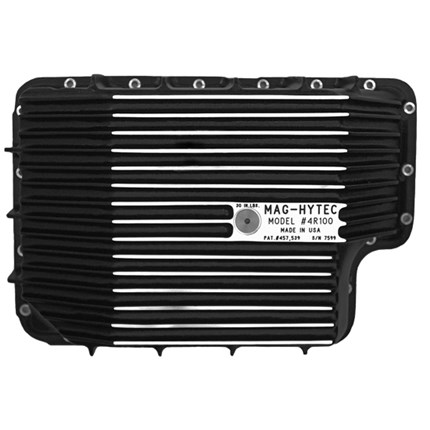

Mag-Hytec Transmission Pan - 94-03 Ford Powerstroke 7.3L - #F4R100

Thoroughbred Sku #: MAGF4R100
Manufacturer Sku #: F4R100

Item Options:

Install Sheet - PDF:




  • 1994 - 2003 Ford F250
  • 1994 - 2003 Ford F350
  • 1994 - 2003 Ford F450
  • 1999 - 2003 Ford F550

Product Details

Product Name: Mag-Hytec Transmission Pan
Manufacturer: Mag-Hytec
Manufacturer Part #: F4R100
Thoroughbred Diesel Part #: MAGF4R100
Fitment Notes: Mag-Hytec Transmission Pan - 1994-2003 Ford Powerstroke 7.3L - #F4R100

A word of caution to the installer / vehicle owner:

The Mag-Hytec pan is designed to fit the factory Ford E4OD / 4R100 transmission as supplied as original
equipment. However, in some applications, or because of the use of certain factory options and/or after market
equipment, there may be clearance problems between your Mag-Hytec pan and other vehicle components. It is
the responsibility of the vehicle owner / installer to ensure that there is no contact between the pan and other
moving or fixed vehicle components Contact with any vehicle component, or the modifying of the Mag-
Hytec pan voids the warranty. Mag-Hytec assumes no liability, expressed or implied, for damage or
injury to persons or property.

  • Overall height 6 1/8"
  • 1990 to 2003 F150, F250, F350, F450, F550, F650 Trucks, Vans, Motor homes
  • All 7.3 Liter Diesels to 2003
  • All V10 Gas to 2004 (until 3 valve V10), 2004 Lightning and Vans
  • Holds 7.6 quarts more fluid than stock pan
  • Includes: Bolt kit, and Drain Plug.
  • Extra filters are also available for your convenience.
