Edge Revolver 6 Position Performance Chips

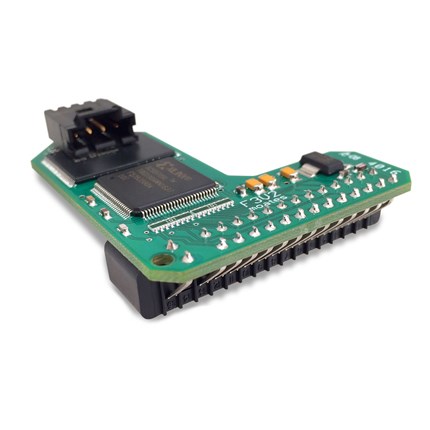

The new Edge Revolver Performance Chip is designed for 1995-2003 Ford 7.3L Power Stroke diesels and can make up to 150 HP with up to 6 performance programs switchable on the fly using the included switch!

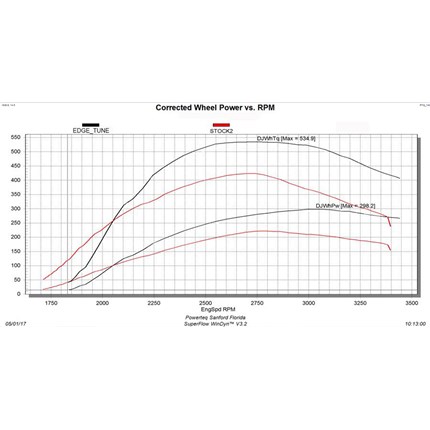

The biggest benefit of using the Edge Revolver chip over the competition is simple: Edge makes the BEST Diesel tunes. At Edge products, diesel performance is our passion. Every day we install cool new toys on our in-house diesel fleet in order to create an extraordinary driving experience. Our engineers build the products for people like themselves- Diesel Nuts! You can expect better tunes, better performance gains (level for level) and better drivability from an Edge Revolver chip than any other chip around for your 7.3L. We are proud diesel people, and we set out to prove it- just look at the dyno sheet!

Edge Revolver Chip Tune Levels:*
Level 1: Stock Tune
Level 2: High Idle
Level 3: 50 Horsepower
Level 4: 75 Horsepower
Level 5: 100 Horsepower
Level 6: 140 Horsepower

Switch on the Fly for Tuning for your 7.3L Powerstroke

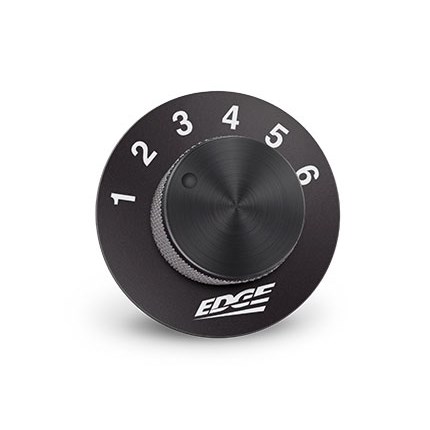

Every Revolver chip comes with a 6-position switch that will let you change the power level while driving. This might not seem like a big deal at first, but imagine you are getting ready to go on a camping trip and have your camping trailer hooked up. You probably want to use your tow setting for that so you flip the switch down to your tow setting. When you get to the camp ground and drop your trailer off, you want to head down to the nearest market for some more camping supplies, and you want to do it FAST to show your buddy- just switch to your performance level! The bottom line is that all of your performance levels are available to you at the flick of a switch, no re-programming required and the change is instant!

How to Order an Edge Revolver Chip

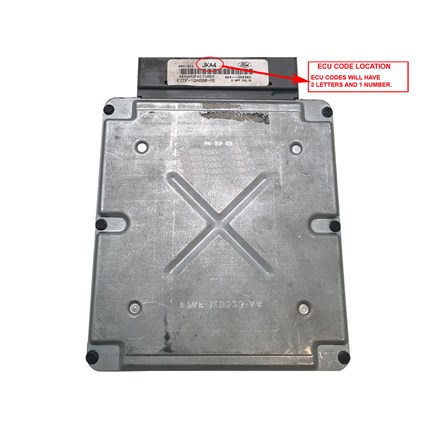

You will need some information from your truck before you order an Edge Revolver Chip. First, you will need the “ECU Code” from your truck’s ECU. It is easy to find- just look for your ECU which will be located behind the Driver’s Side Kick Panel where there is a black plug that will have a sticker on the plug that shows the ECU code. In the case that this sticker isn’t there or the plug has been removed then you can look in the engine compartment where the main harness connection connects to the ECU. In some cases you can put your phone down by the connector and take a picture of it to reveal the ECU code. If you can’t see it then you may need to remove the ECU. There will be a large 4 Digit Code there that are 3 letters and 1 number. These “ECU Codes” identify what ECU is in your truck, and they come in groups. Some examples might be NVK2 and NVK4, which share the same tunes which would have the same “Box Code”, but have different ECM codes. You will need to give your ECM code to the dealer that is burning your chip, or buy the chip pre-programmed for your ECM code (or box code family). Here is an example of what your ECM code will look like on the ECM.

Getting the chip installed
You can easily install the Edge Revolver Performance Chip yourself. Follow the directions included with the product for specifics, but for a basic over-view here is what is involved.

1. Make sure you do not have your truck’s key in the ignition
2. Find your ECU in your truck
3. Open the “J” port which is on the side of your ECM
4. Use the included Scrubby pad/alcohol wipe to clean any goo or dust off the port (Make it REALLY clean)
5. Hook your chip’s switch up to the chip itself
6. Insert the chip over the exposed electronics port
7. Run the switch wire off to the side
8. Cover the port with the 4×4 sticker to make sure the ECM does not get additional dust in it
9. Run your switch to the desired location and mount it
10. Enjoy your performance tunes!
