Edge Evolution CS2 + Dash Pod Combo - 00-05 Ford 7.3L/6.0L Excursion, 03-04 Ford 6.0L King Ranch

Edge Evolution CS2 and Dash Pod Combo
00-05 Ford 7.3L/6.0L Excursion, 03-04 Ford 6.0L King Ranch

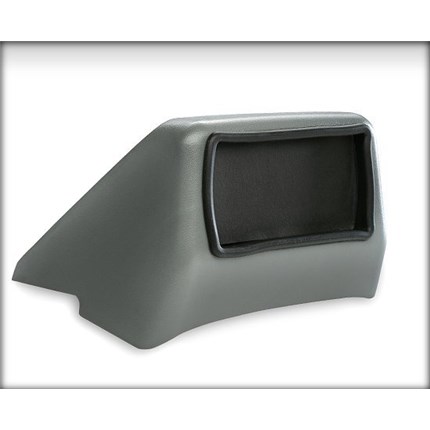

Dash Pods offer a unique solution for the new Edge Evolution CS2 customers looking to add that finished, factory look to their truck.

The Evolution CS2 programmer not only re-programs the vehicle to improve power and performance, but also doubles as a gauge-display device providing vital information about the performance of the newly tuned vehicle and can also act as scan tools for reading and clearing trouble codes.

The CS2 connects directly into the vehicle s computer via the OBDII port and can read and display up to 8 parameters at a time from a list of dozens of engine parameters! The CS2 display can be easily changed and configured to allow each user to view the data most important to them. Safety features with user-defined audible alerts as well as performance test features such as 0-60 and quarter mile times are included, along with light sensitivity meters that automatically adjust screen brightness for improved viewing for both day and night driving.

The CS2 model features a full-color high resolution 2.4- inch, button-controlled screen and is designed to work in conjunction with the Edge Accessory System (EAS) which allows users to connect multiple future accessories to the product such as additional exhaust gas temperature (EGT) sensors with many more accessories!

Other Features:

• Analog and digital gauge display
• Includes light sensitivity meter to dim screen as ambient light decreases
• Mileage coach software
• Maintenance manager software
• Performance tools (0-60, 1/4 mile, HP and TQ numbers)
• Data logging
• MyStyle software
• EAS compatiable
• Alerts and records
• Display US or metric units of measure
• Ships with a universal suction cup mount
• Compatible with all Edge custom dash pods with pod adaptor (sold separately)
• Internet updateable
• Easy installation

• New Mileage Coach Screen Layout
• Mileage Parameters to monitor
• Trip Monitor (Monitors fuel cost on trips)
• MPG Calculator
• Fuel Saving Driving Tips including: Idling, Weather, Cruise Control, Cargo/Towing, Excessive Speed, ETC.

• Slim, sleek case design
• 2.4" full-color, high-resolution, button-control screen
• Custom color mixer for gauge arcs, needles, and backgrounds
• Multiple gauge screen layouts
• Fully customizable backgrounds
• One simple HDMI style plug for power and linking EAS accessories
• One-touch easy menu navigation
• Notification center

• Performance tuner for mileage, towing, daily driving, and performance
• Up to an additional 180HP and 440 ft lb TQ* on Diesel applications
• Up to an additional 50HP and 50 ft lb TQ* on Gas applications
• Custom tuning for shift points, shift firmness, TQ management, fuel pressure and more*
• Adjust speed and rev limiters*
• Correct speedometer*

SUPPORTED VEHICLE PARAMETERS - (PIDS)

1999-2003 Ford Power Stroke 7.3L
Accel Pedal Position, Battery Voltage, Engine Oil Temp, Engine RPM, Exhaust Back Pressure, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, IPR Duty Cycle, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Time 0-60, Time 1/4 mile, Timing, Trans Temp, Turbo Boost, Vehicle Speed, Waste Gate Control Duty Cycle

2003-2007 Power Stroke 6.0L
Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed (03-04), Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Exh. Backpressure, FICM Voltage, FICM Synchronization, Gear with TCL, ICP Pressure, ICP Voltage, INJ Press Regulator, Injector Pulse Width, Intake Air Temp, Main INJ PWR, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, TCC Duty Cycle, Time 0-60, Time 1/4 mile, Trans Fluid Temp, Turbo Boost, Vehicle Speed (04-07), Variable Geometry Turbo Duty Cycle
