Thoroughbred Sku #: DVDDD-OBS-HVFDK-2P Manufacturer Sku #: DD-OBS-HVFDK-2P
Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit
$1,449.95
1994 - 1997 Ford E Series Van
1994 - 1997 Ford F250
1994 - 1997 Ford F350
1994 - 1997 Ford F450

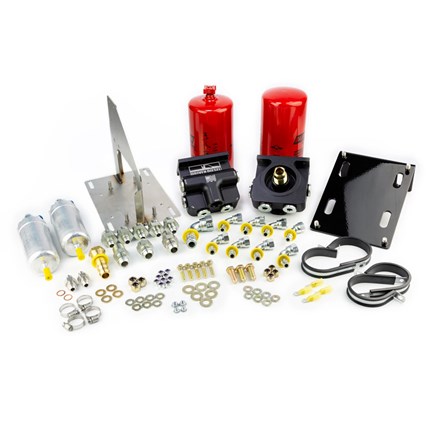

Product Name: Driven Diesel OBS High Volume Fuel Delivery Kit (Dual Bosch) - 94-97 Ford Powerstroke 7.3L Manufacturer: Driven Diesel Manufacturer Part #: DD-OBS-HVFDK-2P Thoroughbred Diesel Part #: DVDDD-OBS-HVFDK-2P Fitment Notes: 1994-1997 Ford Powerstroke 7.3L
ALL DRIVEN DIESEL HIGH VOLUME FUEL DELIVERY KITS ARE NOW TANK CONNECTION UNIVERSAL. THIS MEANS THAT WE ARE NOT INCLUDING THE TANK CONNECTION (5/8" PICKUP, SUMP, ETC), AND THAT WE HAVE INSTEAD DONE EVERYTHING WE CAN TO MAKE THIS KIT COMPATIBLE WITH EVERY KNOWN TANK CONNECTION OPTION AVAILABLE ON THE MARKET. FOR 94-97 OBS TRUCKS, THIS KIT WILL WORK WITH ANY SUMP WITH A 1/2" FEMALE NPT PORT OR -8 O-RING BOSS PORT, THE DRIVEN DIESEL 5/8" PICKUP TUBE KIT AND FASS PICKUP TUBE KITS.

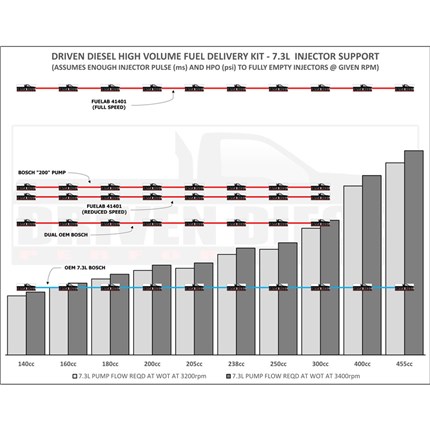

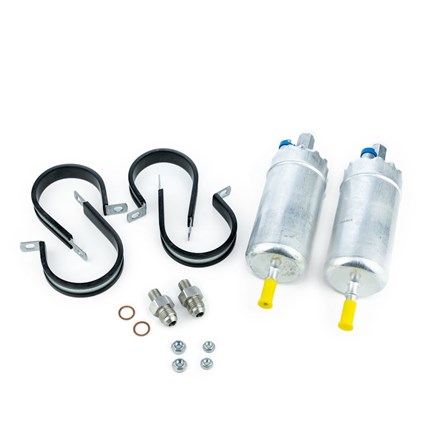

This DRIVEN DIESEL HIGH VOLUME FUEL DELIVERY KIT for 1994-1997 Ford 7.3L OBS Trucks was designed to support performance street builds, while still maintaining "Near OE" reliability. We have accomplished this by using two of the Bosch OE fuel pumps from a 7.3L Super Duty. These pumps were specifically designed to pump diesel fuel and have proven time and again that they are capable of running in excess of 100,000 miles without fail. By running two of these pumps in a "side by side" a parallel configuration, we have doubled the volume of fuel we are capable of delivering to the engine, allowing us to support larger injector upgrades without sacrificing reliability. Dual pumps also provides a level of redundancy for "high performance" trucks that are also asked to do regular duty as the family tow rig or daily driver. Coupled with our newly revised Compact Fuel Pump & Filter Mount and our Killer Billet Fuel Filter Heads, this kit provides everything you need to feed your hungry 7.3L Powerstroke truck.
OBS FUEL TANK NOTICE : High Volume Fuel Pumps CAN NOT be used with the OEM Fuel Tank Selector Valve! Use of this kit REQUIRES that the truck pickup and return all fuel to ONLY ONE TANK, bypassing the fuel tank selector valve completely. Attempting to use the fuel tank selector valve with this kit WILL damage the pump(s) and void the warranty! Additional options for maintaining fuel tank capacity are discussed in the installation instructions.

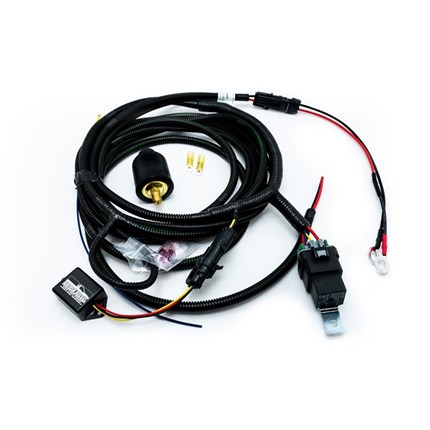

** WIRING NOTE : We provide this kit with a single wiring harness, and instructions that will run BOTH fuel pumps 100% of the time. This is NOT the only way to do it, running dual pumps provides a flexibility that you don't get with a single pump setup, you simply need to purchase a second fuel pump harness (see "Related Products" above) to open up the possibilities. With two separate harnesses, you could have complete, independent control of your fuel pumps from inside the cab. With a pair of toggle switches (not included), you could run the truck on a single fuel pump under "normal driving" conditions, easily alternate back and forth between the pumps so you are not always running the same one, and easily enable the second pump only when you are needing the extra volume.
This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you will need to plan on installing the kit on the OUTSIDE of the frame rail. In these cases, care will need to be taken with regard to the parking brake cable and fuel line routing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting, but we have tested and confirmed that it will fit outside the frame as well.
* COMPATABILITY NOTE : This kit was designed to work with our very popular "7.3L OBS Fuel Bowl Delete" Regulated Return Kit. We supply standard #6AN fittings for making the connection to the fuel inlet at the engine which will mate up perfectly with our 7.3L Fuel Bowl Delete Regulated Return Kit. If you are using this kit with another brand of engine fuel system, make sure that system includes a Fuel Pressure Regulator, you may need additional parts to complete the connection.

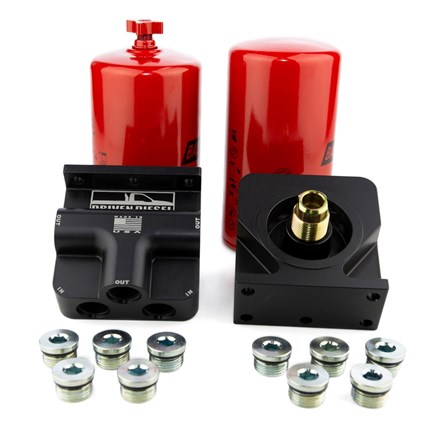

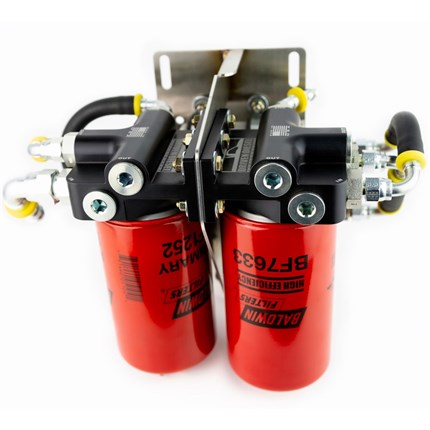

If you need to order replacement fuel filters for this kit, you can find them in the "Related Products" section above. This kit uses the Baldwin BF1252 "Pre-Pump" Fuel Filter/Water Separator and the Baldwin BF7633 "Post Pump" Fuel Filter.
STOCK NOTICE : Due to the large number of options within our "High Volume Fuel Delivery System" line, we do not have these kits pre-assembled and ready to ship. Each kit will be BUILT-TO-ORDER, once the order has been received. PLEASE ALLOW 3-5 BUSINESS DAYS FOR ORDER PROCESSING, KIT ASSEMBLY AND SHIPPING. If you have a need that is more urgent, please call our office and discuss it with a member of our staff to confirm that we can meet your deadline before ordering. Thank You for your patience and understanding!
Driven Diesel OBS High Volume Fuel Delivery Kit Features:
