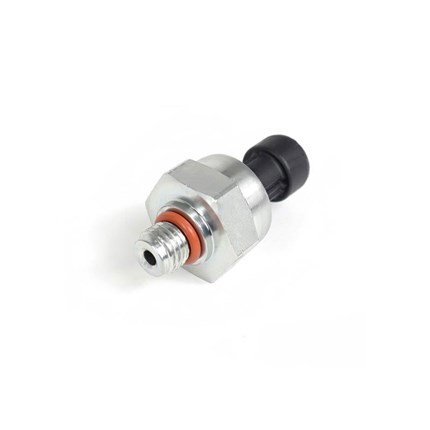

DieselSite 6.0L Ford Injector Control Pressure Sensor - 03-07 Ford 6.0L

Product Name: DieselSite 6.0L Ford Injector Control Pressure Sensor - 03-07 Ford 6.0L
Manufacturer: Diesel Site
Thoroughbred Diesel Part #: DSTFDINJ0307FD
Fitment Notes: 2003-2007 Ford Powerstroke 6.0L

This is a replacement ICP sensor for the 6.0L Ford PSD light duty diesel.

MODEL AND VARIATIONS:

There were two locations and thus two sensors used on the 6.0L Ford PSD.

With the early 6.0L oil system, the sensor is located at the top of the pump cover.

On the late 6.0L oil system, the sensor was located to the valve cover.  To help seal, there is a flange built in.

2003 - 2004 [Early]

Sensor is located at the top of the high pressure oil pump cover.

Cross reference:  3C3Z-9F838-AA

2004.5 - 2007 [Late]

Sensor is located in the valve cover.

Cross reference:  4C3Z-9F838-A

Choose the appropriate model ICP sensor based on your location and needs.

DieselSite 6.0L Ford Injector Control Pressure Sensor Features:

• Direct-fit replacement for OEM ICP sensors
• Restores accurate fuel injection pressure readings
• Available for both early (2003–2004) and late (2004.5–2007) 6.0L systems
• High-quality construction for long-lasting reliability
• Designed for quick installation with OEM-style connectors
• Cross References:
  • Early: 3C3Z-9F838-AA (top of high-pressure oil pump cover)
  • Late: 4C3Z-9F838-A (mounted in valve cover with built-in flange)
• For more information on Diesel Site call us at 1-859-737-4966
