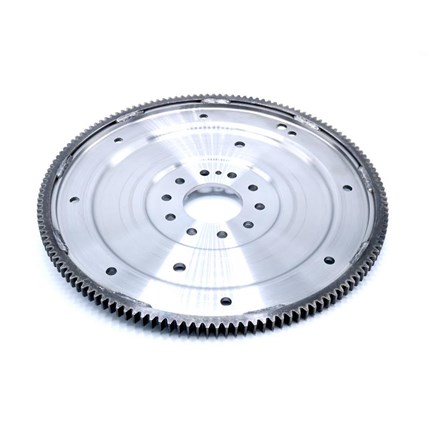

DieselSite 5R110 Billet Flex Plate - 2008-2010 Ford Powerstroke 6.4L

Product Name: DieselSite 5R110 Billet Flex Plate - 2008-2010 Ford Powerstroke 6.4L
Manufacturer: Diesel Site
Manufacturer Part #: FLEX64
Thoroughbred Diesel Part #: DSTFLEX64

DIESELSITE's high speed alloy billet steel flex plate's are made to overcome common cracks and fatigue breakage of the stock flex plates caused by high mileage and higher horsepower builds. Always be sure to check and inspect your flex plate if you are replacing your transmission.

FITMENT and INSTALLATION:

• This unit is for 2008-2010 5R110W transmissions.
• *Will not work with 2003-2007 model 5R110 transmissions.

TORQUE SPECS:

• Ford recommends you not NOT reuse your bolts.
  You can source new Ford bolts [3C3Z-6379-BA] or we offer ARP mounting bolts.
• Use the torque sequence pattern provided with your DIESELSITE Flex Plate for installation.

Torque spec is as follows:

• 1st: loosely torque bolts to 5 ft/lbs
• 2nd: torque bolts to 69 ft/lbs
