Derale High-Output Single 17" Electric Fan With Aluminum Shroud

Thoroughbred Sku #: DER16822
Manufacturer Sku #: 16822

Item Options:

Install Sheet - PDF:


$377.75

free-shipping-no-handling
Vehicle Fitment: Universal - 22-1/4" x 17-5/8" x 3"

Product Details

Product Name: Derale High-Output Single 17" Electric Fan With Aluminum Shroud
Manufacturer: Derale
Manufacturer Part #: 16822
Thoroughbred Diesel Part #: DER16822

This High Output Single RAD Fan Powerpack is part of the HO Aluminum Shrouded Fan Series designed with popular applications in mind. This assembly measures 22 1/4" wide by 17 5/8" top to bottom and only 3" thick overall to offer a precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 17" high output two-speed fan is one of the best in our line-up offering 2400 CFM when on high to create the most airflow possible in a compact size.

Derale Features:

  • Designed for primary cooling
  • Raw aluminum shroud construction can be polished, painted or anodized
  • High Output 265 watt motor
  • 2400 CFM
  • Ultra-quiet patented skewed blade design
  • Puller (engine side) applications only
  • Kit includes mounting brackets and complete mounting hardware
  • For more information on Derale call us at 1-859-737-4966.

Specifications

  • CFM high/low: 2400/1800
  • Amp draw high/low: 23.5/17.4

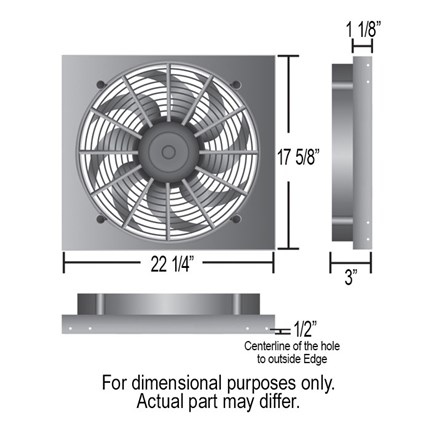

  • Width:22 1/4"
  • Height: 17 5/8"
  • Depth: 1-1/8"
  • Overall depth: 3"
  • Mounting Hole(s) center to outside edge: 1/2"
