Derale Fluid Control Thermostat (3/8" NPT, 180 Degree)

Product Name: Derale Fluid Control Thermostat (3/8" NPT, 180 Degree)
Manufacturer: Derale
Manufacturer Part #: 25011
Thoroughbred Diesel Part #: DER25011

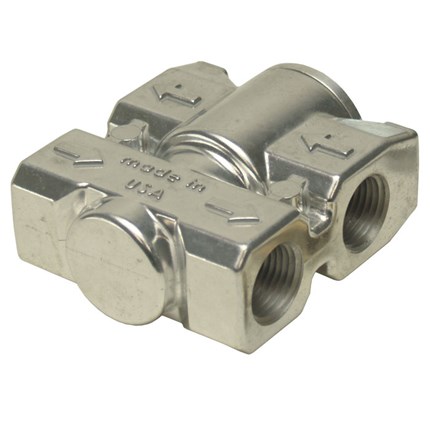

This Billet Style Cast Aluminum Fluid Control Thermostat with 3/8" NPT ports allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180 degrees to change flow direction.

Derale Features:

• Bypasses cooler until fluid temperature reaches 180°F
• Provides quicker warm-up temperatures
• Perfect for cold weather climates
• Can be rotated 180 degrees to switch flow direction
• Flows up to 20 gallons per minute
• Rated up to 200 psi
• Ultra bright finish
• 3/8" NPT inlet/outlet ports
• For more information on Derale call us at 1-859-737-4966.

Specifications

• Activating temperature: 180°F
• Inlet Size: 3/8" NPT
• Aluminum
