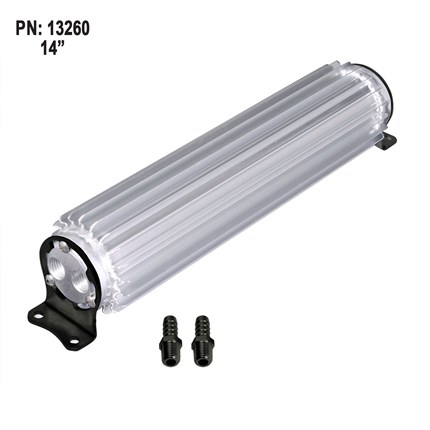

Derale Dual-Pass 14" Clear Anodized Heat Sink Cooler

Product Name: Derale Dual-Pass 14" Clear Anodized Heat Sink Cooler
Manufacturer: Derale
Manufacturer Part #: 13260
Thoroughbred Diesel Part #: DER13260

Heat sink cooler assemblies have removable brackets that allow the cooler to be clocked for easier installation. These Two-pass Heat Sink coolers use both external and internal fins to maximize heat transfer. With their sleek 3” diameter they can be mounted in a variety of locations and the universal design can be used to cool a wide variety of components. These Dual Clear Anodized coolers are perfect for fuel and power steering applications. Includes hose barbs.

Derale Features:

• Aluminum heat sink design Features internal and external heat dissipating fins for high heat transfer
• Stamped Turbulator has been added for increased efficiency
• Removable brackets allow cooler to be clocked
• Clear Anodized finish
• Brackets are black anodized
• Compact 3" diameter to fit most frame rails
• Dual pass cooler design
• 3/8" NPT inlets
• 3/8" NPT to 3/8" hose barbs included
• All Derale coolers are rated at 250 psi working pressure, 300 psi burst strength
• For more information on Derale call us at 1-859-737-4966.

Specifications

• Cooler style: Heat Sink
• Construction: Aluminum
• Clear Anodized
• Inlet/Outles Port Size: 3/8" NPT
• Fitting size: 3/8" NPT to 3/8" hose barb
• Height: 3-1/4"
• Width: 3"
