Derale 25-Row Series 10000 Stack Plate Cooler (-8AN)

Product Name: Derale 25-Row Series 10000 Stack Plate Cooler (-8AN)
Manufacturer: Derale
Manufacturer Part #: 52508
Thoroughbred Diesel Part #: DER52508

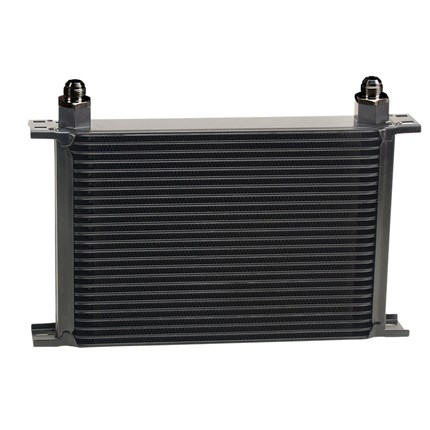

Our most efficient heat exchanger, the all aluminum 25 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -8AN male adapter fittings.

Derale Features:

• Designed for engine and transmission cooling
• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 25 row cooler design
• Male -8AN aluminum O-ring inlet fittings
• 46,000 BTU's Per Hour
• For more information on Derale call us at 1-859-737-4966.

Specifications

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN o-ring female x -8AN male

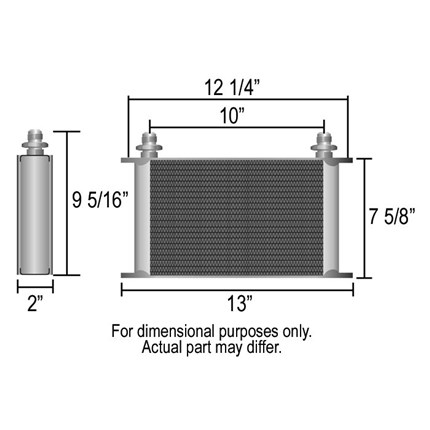

• Width: 13"
• Height: 9-5/16"
• Depth: 2"
• Inlet dim: 10"
• Mounting: 12-1/4" x 7-5/8"
• 46,000 BTU's Per Hour
• Fluid Capacity:16oz
