Derale 25-Row Hyper-Cool Remote Cooler (-8AN)

Product Name: Derale 25-Row Hyper-Cool Remote Cooler (-8AN)
Manufacturer: Derale
Manufacturer Part #: 15860
Thoroughbred Diesel Part #: DER15860

Equipped with our top-of-the-line 25-row stack plate cooler, the Hyper-Cool remote fluid cooler can literally be mounted almost anywhere, making it a popular addition for serious performance cars, hot rods, muscle cars and trucks. With an all-aluminum, oven-brazed Stack Plate cooler coupled with a Tornado fan and aluminum shroud, it comes with aluminum -8AN male fittings and brass -8AN x 1/2" barb adapters to provide serious cooling in a small package. This cooler was designed primarily for engine oil applications, but also can be used for heavy-duty transmission or fuel cooling. The Hyper-Cool is perfect for extreme duty applications.

Derale Features:

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• High efficiency Stacked Plate cooler
• Clear anodized aluminum shroud
• 500 CFM reversible Tornado electric fan
• -8AN inlet size
• 46,000 BTU's Per Hour
• 16oz. Additional Fluid Capacity
• Cooler assembly includes fan mounted cooler, two aluminum -8AN fittings and two -8AN x 1/2" hose barb fittings
• For more information on Derale call us at 1-859-737-4966.

Specifications

• Cooler style: Stacked Plate
• Inlet size: -10AN / 7/8"-14 o-ring female x -8AN male
• Fan size: 8"
• CFM: 500
• Amp draw: 4.8

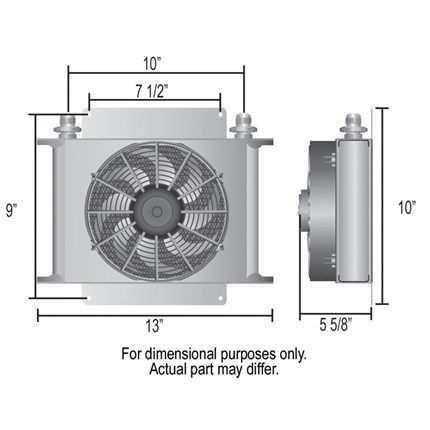

• Width: 13"
• Height: 10"
• Depth: 5-5/8"
• Inlet dim: 10"
• Mounting: 7-1/2" x 9"
• Barb size: 1/2"
• 46,000 BTU's Per Hour
