Derale 19-Row Series 10000 Stack Plate Transmission Cooler Kit

Product Name: Derale 19-Row Series 10000 Stack Plate Transmission Cooler Kit
Manufacturer: Derale
Manufacturer Part #: 13403
Thoroughbred Diesel Part #: DER13403

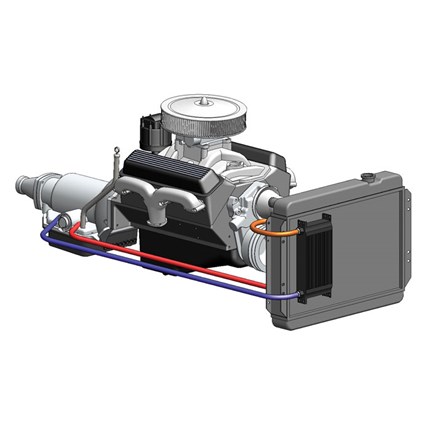

With our top of the line 16 Row Stack Plate cooler, -6AN aluminum fittings and hose barb adapters, this highly efficient kit extends transmission life by preventing heat-related transmission failures while also improving shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Derale Features:

• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 19 row cooler design
• Male -6AN aluminum O-ring inlet fittings & 3/8" hose barb adapters included
• Complete hardware kit included
• For more information on Derale call us at 1-859-737-4966.

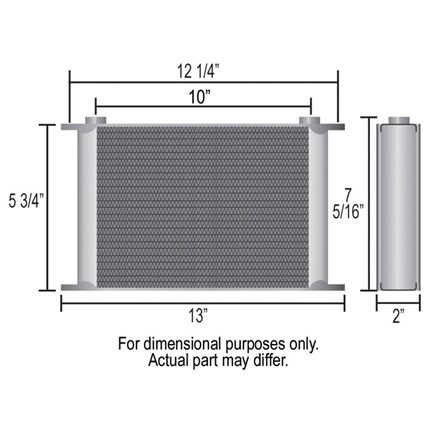

Specifications

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN o-ring female x -6AN male
• Width: 13"
• Height: 7-5/16"
• Depth: 2"
• Inlet dim: 10"
• Mounting: 12-1/4" x5-3/4"
• 37,000 BTU's Per Hour
• Derale coolers are rated at 250psi working pressure and 300psi burst strength
• 12oz additional fluid capacity
