Derale 18-Row Hi-Flow Racing Fluid Cooler (7/8"-14 UNF)

Product Name: Derale 18-Row Hi-Flow Racing Fluid Cooler (7/8"-14 UNF)
Manufacturer: Derale
Manufacturer Part #: 61878
Thoroughbred Diesel Part #: DER61878

These Hi-Flow Racing Coolers are precision TIG welded and feature the most efficient tube design in the aftermarket, which supports up to 350 PSI with minimal pressure drop. Perfect for everything from Drag racing to Off-Road. Available in 11 Row and 18 Row Designs.

Derale Features:

• Dramatically extends engine or transmission life
• Aircraft aluminum grade cooler design
• Designed for puller applications
• Extruded tube design with turbulators for maximum heat dissipation
• Precision TIG welding
• 20 GPM Flow rate
• Supports up to 350 P.S.I., with minimal pressure drop
• 11 Row (PN: 61178) Replacement Core Part for Part No. 65840
• 18 Row (PN: 61878) Replacement Core Part for Part No. 65860 and 65861
• For more information on Derale call us at 1-859-737-4966.

Specifications

• Inlet(s) size: 7/8"-14 UNF O-ring

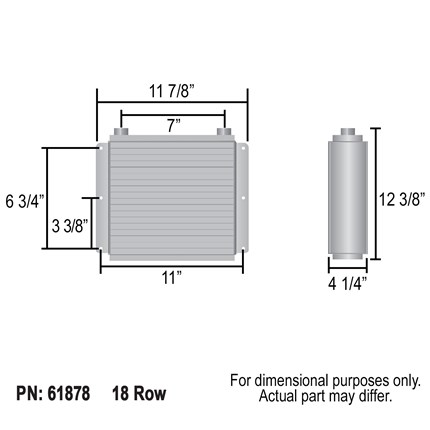

• PN 61178: Mounting: 11" x 7-3/16"
• PN 61878: Mounting: 6 3/4" x 11"
  • Core is 8 1/2" x 9 3/8"
