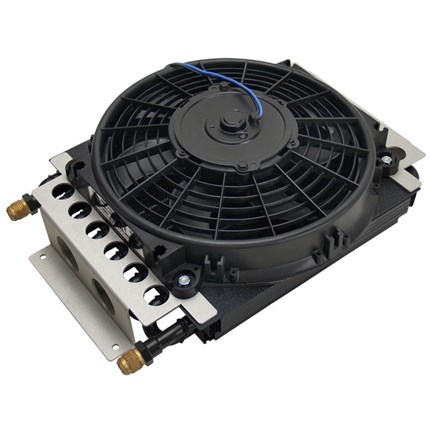

Derale 16-Pass Electra-Cool Remote Transmission Cooler (-8AN)

Product Name: Derale 16-Pass Electra-Cool Remote Transmission Cooler (-8AN)
Manufacturer: Derale
Manufacturer Part #: 15900
Thoroughbred Diesel Part #: DER15900

With it's own air supply, the popular Electra-Cool remote transmission cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 1/2" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. This is a durable, trouble-free way to add years to the life of your transmission, and perfect for heavy duty towing and hauling.

Derale Features:

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• 16 pass Tube & Fin cooler
• Clear anodized aluminum shroud
• 650 CFM reversible Tornado electric fan
• -8AN inlet size
• Derale coolers are rated at 250psi working pressure and 300psi burst strength
• Transmission cooler kit includes fan mounted cooler, two -8AN to 1/2" barbed hose fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 1/2" compression fittings, and hardware
• For more information on Derale call us at 1-859-737-4966.

Specifications

• Cooler style: 16 pass Tube & Fin
• Inlet size: -8AN
• Fan size: 10"
• CFM: 650
• Amp draw: 5.3

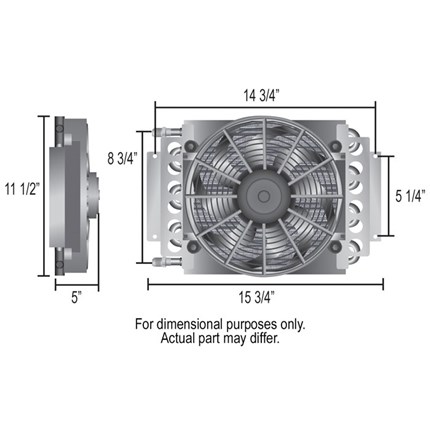

• Width: 15-3/4"
• Height: 11-1/2"
• Depth: 5"
• Inlet dim: 8-3/4"
• Mounting: 14-3/4" x 5-1/4"
• Cooler fluid capacity: 19.6 oz
• 14,000 BTU/ Hr
• Hose size: 1/2"
• Hose length: 10'
• Airflow: Puller (reversible)
