Derale 16-Pass Electra-Cool Remote Cooler (-8AN)

Product Name: Derale 16-Pass Electra-Cool Remote Cooler (-8AN)
Manufacturer: Derale
Manufacturer Part #: 15800
Thoroughbred Diesel Part #: DER15800

With its own air supply, the ever-popular Electra-Cool remote cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, built with -8AN male fittings and includes 2 each -8AN x 1/2" barb fittings. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for heavy duty transmission or fuel cooling. Made in the USA.

Derale Features:

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• 16 pass Tube & Fin cooler
• Clear anodized aluminum shroud
• 650 CFM reversible Tornado electric fan
• -8AN inlet size
• Derale coolers are rated at 250psi working pressure and 300psi burst strength
• Cooler assembly includes fan mounted cooler, two -8AN fittings and two -8AN x 1/2" hose barb fittings
• For more information on Derale call us at 1-859-737-4966.

Specifications

• Cooler style: 16 pass Tube & Fin
• Inlet size: -8AN
• Fan size: 10"
• CFM: 650
• Amp draw: 5.3

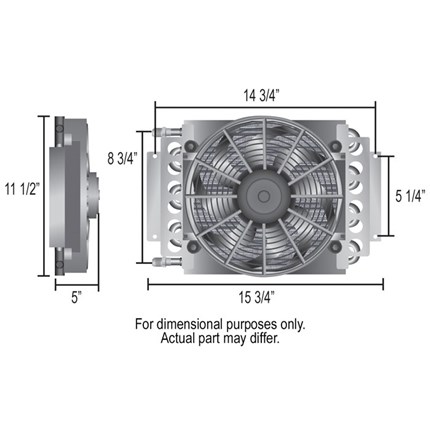

• Width: 15-3/4"
• Height: 11-1/2"
• Depth: 5"
• Inlet dim: 8-3/4"
• Mounting: 14-3/4" x 5-1/4"
• Cooler fluid capacity: 19.6 oz
• 14,000 BTU/ hr
• Barb size: 1/2"
• Airflow: Puller (reversible)
