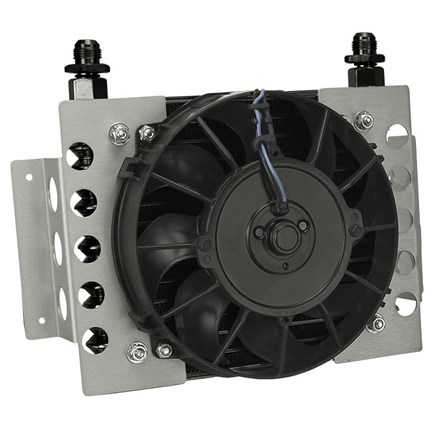

Derale 15-Row Atomic Cool Plate & Fin Transmission Cooler (-8AN)

Product Name: Derale 15-Row Atomic Cool Plate & Fin Transmission Cooler (-8AN)
Manufacturer: Derale
Manufacturer Part #: 15950
Thoroughbred Diesel Part #: DER15950

A step up from Tube & Fin type coolers, this popular remote cooler can literally be mounted almost anywhere, making it a popular addition for performance cars, hot rods, muscle cars and trucks. A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 1/2" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. The Atomic-Cool is designed for heavy duty towing and hauling, and can add years to the life of your transmission. Made in the USA.

Derale Features:

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• High efficiency OEM style Plate & Fin cooler
• Clear anodized aluminum shroud
• 500 CFM reversible Tornado electric fan
• -8AN inlet size
• Cooler capacity is an additional 17oz
• Transmission cooler kit includes fan mounted cooler, two -8AN fittings hose barb fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, two 1/2" compression fittings, and mounting hardware
• For more information on Derale call us at 1-859-737-4966.

Specifications

• Cooler style: Plate & Fin
• Inlet size: 5/8"-18 o-ring female x -8AN male
• Fan size: 8"
• CFM: 500
• Amp draw: 4.8
• Width: 12-3/4"
• Height: 9-3/8"
• Depth: 4-5/16"
• Inlet dim: 8-9/16"
• Mounting: 11-5/8" x 4"
• Hose size: 1/2"
• Hose length: 10'
• 22,000 BTU/Hr
