Derale 15-Row Atomic Cool Plate & Fin Remote Cooler (-8AN)

Product Name: Derale 15-Row Atomic Cool Plate & Fin Remote Cooler (-8AN)
Manufacturer: Derale
Manufacturer Part #: 15850
Thoroughbred Diesel Part #: DER15850

A step up from Tube & Fin type coolers, this Atomic-Cool remote fluid cooler can be mounted anywhere space permits, making it a popular addition for performance cars, hot rods, muscle cars and trucks. A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, it comes with 2 -8AN male aluminum fittings and 2 -8AN x 1/2" barb adapters. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for heavy duty transmission or fuel cooling. The Atomic-Cool is a tried and true workhorse that can keep vital engine and transmission fluid temperatures under control under severe duty environments. Made in the USA.

Derale Features:

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• High efficiency OEM style Plate & Fin cooler
• Clear anodized aluminum shroud
• 500 CFM reversible Tornado electric fan
• -8AN inlet size
• Cooler assembly includes fan mounted cooler, two -8AN fittings and two -8AN x 1/2" hose barb fittings
• For more information on Derale call us at 1-859-737-4966.

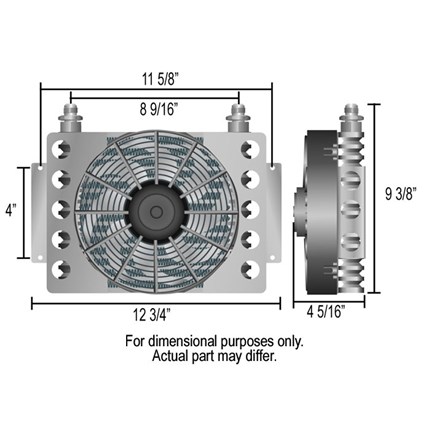

Specifications

• Cooler style: Plate & Fin
• Inlet size: 5/8"-18 o-ring female x -8AN male
• Fan size: 8"
• CFM: 500
• Amp draw: 4.8
• Width: 12-3/4"
• Height: 9-3/8"
• Depth: 4-5/16"
• Inlet dim: 8-9/16"
• Mounting: 11-5/8" x 4"
• Barb size: 1/2"
• 22,000 BTU/Hr
