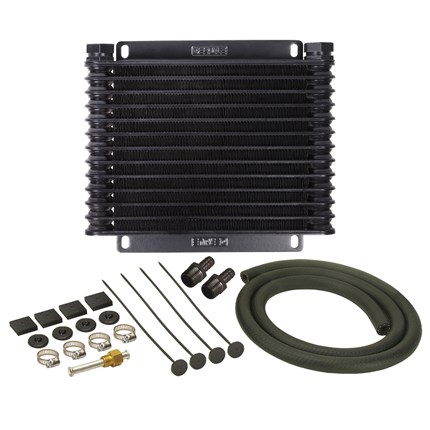

Derale 13-Row Series 9000 Plate & Fin Transmission Cooler Kit

Thoroughbred Sku #: DER13613
Manufacturer Sku #: 13613

Item Options:

Install Sheet - PDF:


$125.25

Vehicle Fitment: Universal - 9-3/4" x 8-7/16" x 1-1/4"

Product Details

Product Name: Derale 13-Row Series 9000 Plate & Fin Transmission Cooler Kit
Manufacturer: Derale
Manufacturer Part #: 13613
Thoroughbred Diesel Part #: DER13613

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" FTP female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Derale Features:

  • Prevents heat related transmission failures
  • Extends life of transmission
  • Improves transmission performance
  • Sturdy furnace-brazed aluminum construction
  • 13 row cooler design
  • 1-1/4" turbulators maximize cooling & minimize pressure drop
  • 1/2" NPT x 3/8" hose barb adapters included
  • GVW: 22000
  • BTU: 21000
  • Fluid Capaicty: 10 oz.
  • All Derale coolers are rated at 250psi working pressure and 300psi burst strength
  • For more information on Derale call us at 1-859-737-4966.

Specifications

  • Cooler style: Plate & Fin
  • Construction: Aluminum
  • GVW: 22000
  • BTU: 21000
  • Inlet size: 1/2" FTP female
  • Fitting size: 3/8" barb

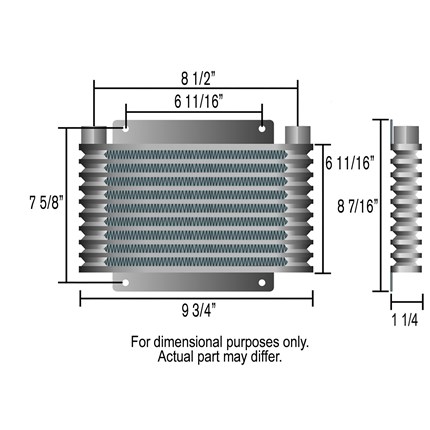

  • Width: 9-3/4"
  • Height: 8-7/16"
  • Depth: 1-1/4"
  • Inlet dim: 8-1/2"
  • Mounting: 6-11/16" x 7-5/8"
  • Hose size: 3/8"
  • Hose length: 4'
