Derale 12" HO Single RAD Pusher/Puller Fan & Standard Mount Kit

Product Name: Derale 12" HO Single RAD Pusher/Puller Fan & Standard Mount Kit
Manufacturer: Derale
Manufacturer Part #: 16924
Thoroughbred Diesel Part #: DER16924

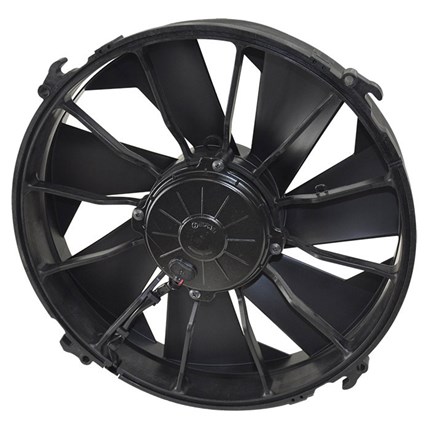

This 12" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 300 watt motor driving 7 skewed blades, it can be used as a pusher with the supplied hardware kit. Fan can also be used as puller by combining with a custom built shroud. Moves 2000 CFM while drawing up to 24.8 amps. This is the replacement fan for part numbers 16814, 16825, 16826, 16836, 16837, 16838, 16842 & 16927.

Derale Features:

• State-of-the-art symmetrical design
• High output 300 watt motor
• 2000 CFM

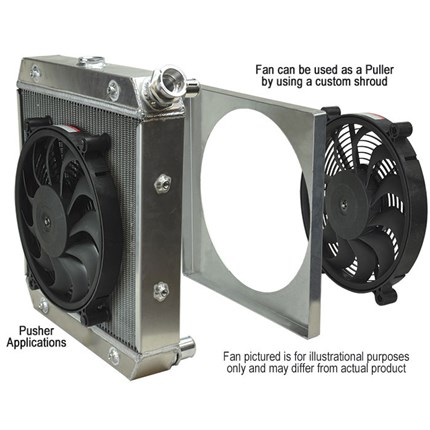

• Mounts as pusher (grill side). *Can be used in puller application when custom shroud is used
• Includes nylon mounting hardware and rubber isolators
• For more information on Derale call us at 1-859-737-4966.

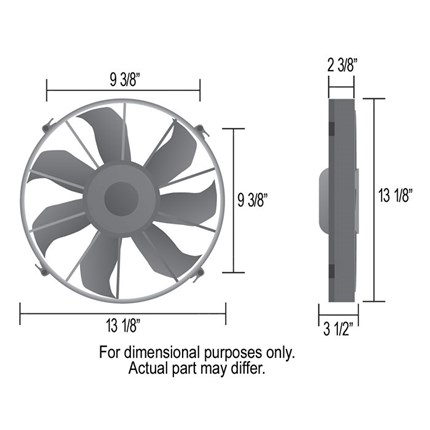

Specifications

• CFM: 2000
• Amp draw: 24.8
• Width: 13-1/8"
• Height: 13-1/8"
• Depth: 2-3/8"
• Overall depth: 3-1/2"
• Mounting: 9-3/8" x 9-3/8"
