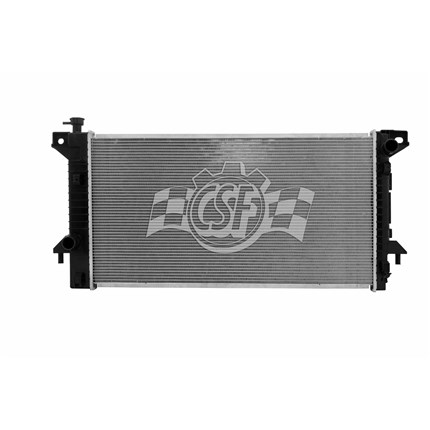

CSF Radiator Fits Ford F-150/F-250/F-350

Thoroughbred Sku #: CSF3546
Manufacturer Sku #: 3546

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$174.83

Popular Fitments: Ford F-150 4.6L 2010-2009 | Ford Expedition 5.4L 2014-2009 | Ford F-150 5.4L 2010-2009 | Ford F-250 Super Duty 5.4L 2010-2009 | Ford F-350 Super Duty 5.4L 2010-2009 | Lincoln Navigator 5.4L 2014-2009

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
CSF-logo

View More Products From

CSF Radiators

Product Details

Product Name: CSF Radiator Fits Ford F-150/F-250/F-350
Manufacturer: CSF Radiators
Manufacturer Part #: 3546
Thoroughbred Diesel Part #: CSF3546
Fitment Notes: Popular Fitments: Ford F-150 4.6L 2010-2009 | Ford Expedition 5.4L 2014-2009 | Ford F-150 5.4L 2010-2009 | Ford F-250 Super Duty 5.4L 2010-2009 | Ford F-350 Super Duty 5.4L 2010-2009 | Lincoln Navigator 5.4L 2014-2009

1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards and sold worldwide for over 50 years - Over 30 million units sold!;Our Radiators are carefully engineered and Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength and Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, and tested on Radiator during assembly

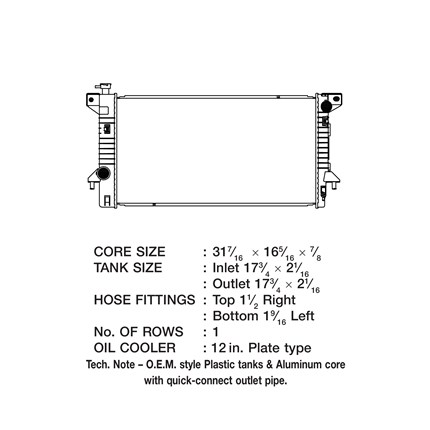

Specs

Bottom Hose Fitting (in): 1 9/16 Left (in)
Box Height (in): 7 7/16
Box Length (in): 41 11/16
Box Weight (lbs): 14
Box Width (in): 21 3/4
Core Length (in): 31 7/16 (in)
Core Material: Aluminum
Core Thickness (in): 7/8 (in)
Core Width (in): 16 5/16 (in)
Cross-flow/ Down-flow: Cross Flow
Csf Cap Number: 4503
Hazardous Material: No
Inlet Length (in): 17 3/4
Inlet Width (in): 2 1/16
No. Of Rows: 1
Oil Cooler (in): 12 (high-efficiency Plate Type)
Outlet Length (in): 17 3/4
Outlet Width (in): 2 1/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks and Aluminum core;with quick-connect outlet pipe.
Top Hose Fitting (in): 1 3/4 Right (in)

Fitment

MakeModelQualifiersYear
FordExpedition
  • Position: N/A
  • 5.4L V8 330ci
2009-2014
FordF-150
  • Position: N/A
  • 4.6L V8 281ci
2009-2010
FordF-150
  • Position: N/A
  • 5.4L V8 330ci
2009
FordF-150
  • Position: N/A
  • Platinum
  • 5.4L V8 330ci
2010
FordF-150
  • Position: N/A
  • XL
  • 5.4L V8 330ci
2010
FordF-150
  • Position: N/A
  • XLT
  • 5.4L V8 330ci
2010
FordF-150
  • Position: N/A
  • Harley-Davidson Edition
  • 5.4L V8 330ci
2010
FordF-150
  • Position: N/A
  • King Ranch
  • 5.4L V8 330ci
2010
FordF-150
  • Position: N/A
  • Lariat
  • 5.4L V8 330ci
2010
FordF-150
  • Position: N/A
  • FX4
  • 5.4L V8 330ci
2010
FordF-150
  • Position: N/A
  • FX2
  • 5.4L V8 330ci
2010
FordF-150
  • Position: N/A
  • SVT Raptor
  • 5.4L V8 330ci
2010
LincolnMark LT
  • Position: N/A
  • 5.4L V8 330ci
2010
LincolnNavigator
  • Position: N/A
  • 5.4L V8 330ci
2009-2014

Reference

Reference NumberReference Name
13098DPI
13099DPI
9L3Z 8005 AOEM
9L3Z 8005 BOEM
FO3010287Partslink
FO3010288Partslink
