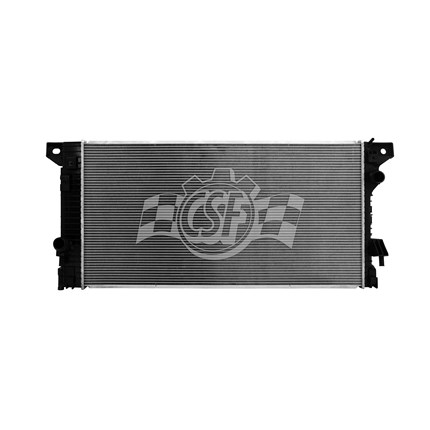

CSF Radiator Fits 2015-2019 Ford F-150

Thoroughbred Sku #: CSF3744
Manufacturer Sku #: 3744

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$187.28

free-shipping-no-handling
Popular Fitments: Ford F-150 2.7L 2019-2015 | Ford F-150 3.5L 2019-2015 | Ford F-150 5.0L 2016-2015

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
CSF-logo

View More Products From

CSF Radiators

Product Details

Product Name: CSF Radiator Fits 2015-2019 Ford F-150
Manufacturer: CSF Radiators
Manufacturer Part #: 3744
Thoroughbred Diesel Part #: CSF3744
Fitment Notes: Popular Fitments: Ford F-150 2.7L 2019-2015 | Ford F-150 3.5L 2019-2015 | Ford F-150 5.0L 2016-2015

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards and sold worldwide for over 50 years - Over 30 million units sold!;Our Radiators are carefully engineered and Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength and Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, and tested on Radiator during assembly

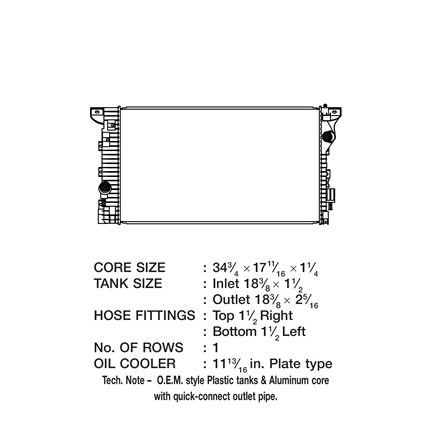

Specs

Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 8 7/16
Box Length (in): 45 3/16
Box Weight (lbs): 18
Box Width (in): 21 3/4
Core Length (in): 34 3/4 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 17 11/16 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 18 3/8
Inlet Width (in): 1 1/2
No. Of Rows: 1
Oil Cooler (in): 11 13/16 (high-efficiency Plate Type)
Outlet Length (in): 18 3/8
Outlet Width (in): 2 5/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks and Aluminum core;with quick-connect outlet pipe. Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm
Top Hose Fitting (in): 1 1/2 Right (in)

Fitment

MakeModelQualifiersYear
FordF-150
  • Position: N/A
  • 3.5L V6 3496cc 213ci
  • Turbocharged
2015-2016
FordF-150
  • Position: N/A
  • 3.5L V6 3496cc 213ci
  • Naturally Aspirated
2015-2017
FordF-150
  • Position: N/A
  • 5.0L V8 4951cc 302ci
2015-2017
FordF-150
  • Position: N/A
  • 2.7L V6 164ci
  • Turbocharged
2015-2017

Reference

Reference NumberReference Name
13510DPI
8013510APDI
FL3Z 8005AOEM
FL3Z 8005 BOEM
FO3010334Partslink
